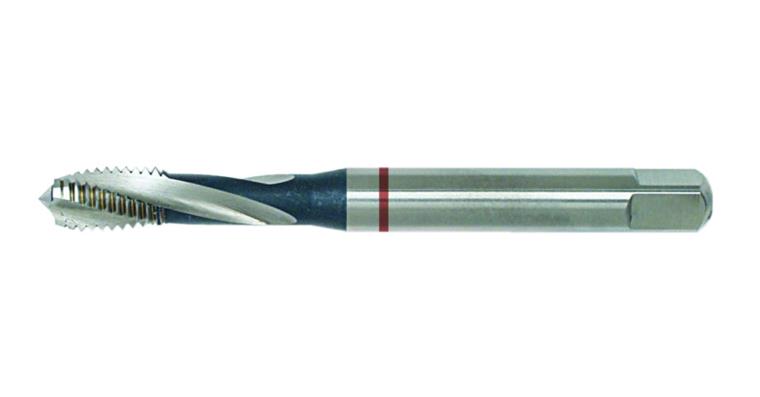

Blind hole screw tap M DIN 371 15° 3-4 chamfer thrds 3xD HSS-E-PM for Ti/Ni M10

Blind hole screw tap M DIN 371 15° 3-4 chamfer thrds 3xD HSS-E-PM for Ti/Ni M10

Blind hole screw tap M DIN 371 15° 3-4 chamfer thrds 3xD HSS-E-PM for Ti/Ni M10
Item no: 1014446 110

Online price:

Available for immediate delivery

Application
- Metric thread
- Blind holes
- Max. drilling depth 3xD
- Titanium, titanium alloys and super alloys

Execution
  • Low-level chip transport to the rear
  • Tolerance range 6H
  • DIN 371/DIN 376
  • Right-hand spiral grooves approx. 15°
  • 3-4 chamfer threads
  • HSSE-PM


Brand: ATORN
Material to be processed: Superalloy nickel or titan base
Thread type: Metric thread
Thread dimension: M10
Thread type x nominal diameter: M10
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance hole ≤ 3xD
Length: 100 mm
Cutting material: HSS-PM
Surface: Uncoated
Pitch: 1,5 mm
Twist angle: 15° (right)
DIN: 371
Shank diameter: 10 mm
Application type/machine type: Conventional | CNC
Core hole diameter: 8,5 mm
Coolant supply: External
Shank square: 8 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 2
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3
