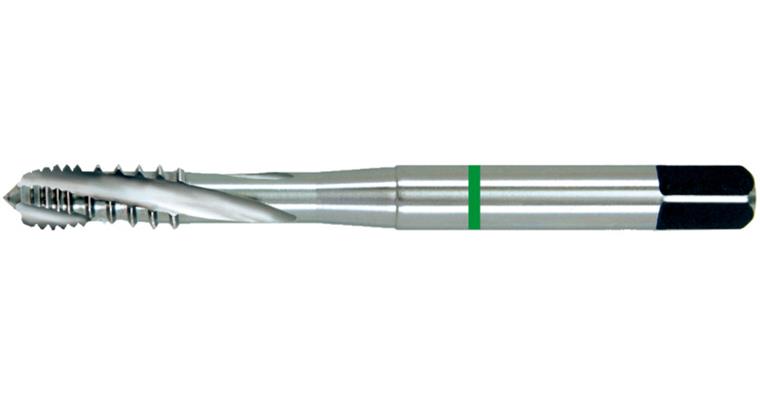

ATORN screw tap HSSE C 376 15° M16 2 mm ISO2 S 2.5xD CNC N

ATORN screw tap HSSE C 376 15° M16 2 mm ISO2 S 2.5xD CNC N

ATORN screw tap HSSE C 376 15° M16 2 mm ISO2 S 2.5xD CNC N
Item no: 1014445 116

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC or conventional machines in through holes in the non-ferrous metals material group.

Execution
structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
  • innovative cutting geometry with interrupted thread reduces torque, improves lubricant distribution and ensures extremely good process reliability and chip removal
  • specialised application with optimised chip geometry, for use in non-ferrous metals with adhesive or lubricating properties


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M16
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 110 mm
Cutting material: HSSE
Surface: Uncoated
Pitch: 2 mm
Twist angle: 15° (right)
DIN: 376
Shank diameter: 12 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 14,0 mm
Type: N MAX Control
Coolant supply: External
Shank square: 9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10479471

EAN no.: 4050293189643

Product Datasheet Datasheet cutting values
