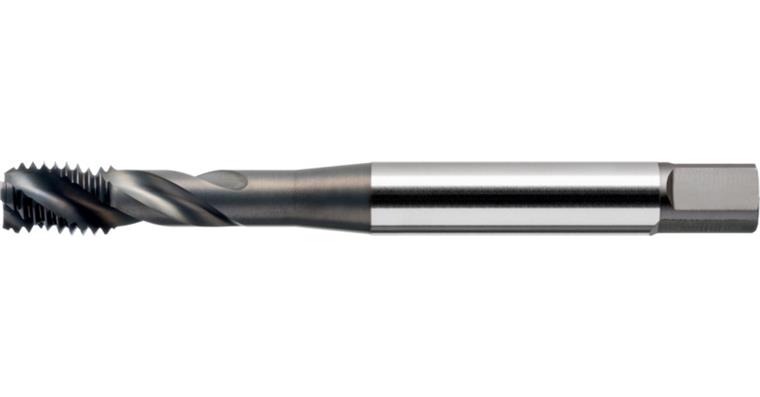

ATORN screw tap HSSE V3 vaporised E 40° M3 0.5 ISO2 2.5xD CNC UNI

ATORN screw tap HSSE V3 vaporised E 40° M3 0.5 ISO2 2.5xD CNC UNI

ATORN screw tap HSSE V3 vaporised E 40° M3 0.5 ISO2 2.5xD CNC UNI
Item no: 1014435 103

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the steel, stainless steel, non-ferrous metals and cast material groups up to a strength of 1200 N/mm²

Advantage
  • Universal use for maximum flexibility
  • Innovative cutting geometry ensures high process reliability even under difficult machining conditions
  • Cuts to slightly above base, with cut shape E


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M3
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: E
Length: 56 mm
Cutting material: HSSE V3
Surface: Vaporised
Pitch: 0,5 mm
Twist angle: 40° (right)
DIN: 371
Shank diameter: 3,5 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 2,5 mm
Type: UNI MAX 40 Control
Coolant supply: External
Shank square: 2,7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 2
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 12280218

EAN no.: 4050293437300

Product Datasheet Datasheet cutting values
