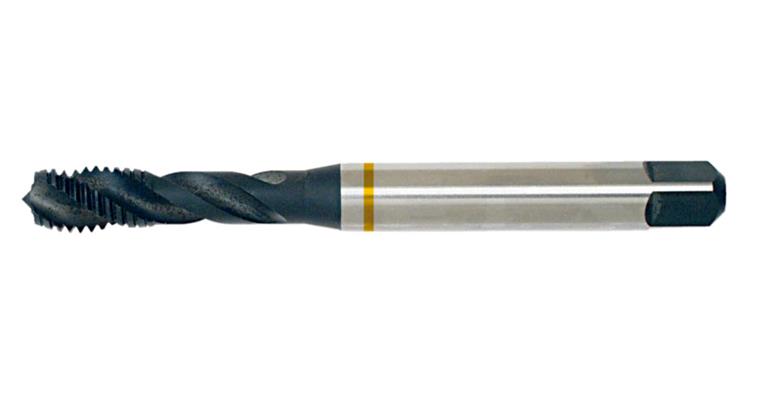

ATORN blind hole screw tap DIN 376 HSS-E 40° for VA M12

ATORN blind hole screw tap DIN 376 HSS-E 40° for VA M12

ATORN blind hole screw tap DIN 376 HSS-E 40° for VA M12
Item no: 1014425 112

Online price:

Available for immediate delivery

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the stainless steel material group.

Execution
Dimensions according to: DIN 371 = reinforced shank (to M10), DIN 376 = straight shank (from M12)

Advantage
long service life and high process reliability thanks to innovative rake for machining stainless steel

Notes
Ideal for machining stainless steel.

Brand: ATORN
Material to be processed: Stainless steel
Thread type: Metric thread
Thread type x nominal diameter: M12
Tolerance of screw taps (Tol.): 6H
Hole type: Blind hole ≤ 3xD
Lead angle shape: C
Length: 110 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 1,75 mm
Twist angle: 40° (right)
DIN: 376
Shank diameter: 9 mm
Core hole diameter: 10,20 mm
Coolant supply: External
Shank square: 7 mm
Overall stainless steel suitability (ISO M): 0
fitness not iron total (ISO N): 0
fitness Titan/Nickel/Super total (ISO S): 0

ATORN-No.: 11290388

EAN no.: 4050293133936

Product Datasheet
