Maschinen-Gewindebohrer Enorm 1-Z/E-X-PM-GLT-1 M5-6HX

Maschinen-Gewindebohrer Enorm 1-Z/E-X-PM-GLT-1 M5-6HX

Maschinen-Gewindebohrer Enorm 1-Z/E-X-PM-GLT-1 M5-6HX
Item no: 1014416 103

Online price:

Available in 5-7 working days.

Application
- Metrisches Gewinde
- Grundlöcher
- Max. Bohrtiefe 3xD
- Für universelle Anwendung in nahezu allen Werkstoffen

Execution
  • Für den Einsatz in CNC-gesteuerten Maschinen ausgelegt.
  • Erhöhte Toleranz für mehr Standweg in abrasiven oder klemmenden Werkstoffen.
  • Konisch abgesetztes Führungsgewinde
  • Längere Nuten
  • DIN-Anschnitt Form E (1,5-2 Gänge)
  • HSSE-PM GLT-1


Brand: EMUGE
Material to be processed: Universal use
Thread type x nominal diameter: M5
Max. thread depth: 3xD
Thread dimension: M5
Pitch: 0,80 mm
Cutting material: HSSE-PM
Surface: TiAlN plus
Hole type: Blind hole ≤ 3xD
Tolerance of screw taps (Tol.): 6HX
Lead angle shape: E
Length: 70 mm
Cutting edge length: 8 mm
Core hole diameter: 4,20 mm
Shank diameter: 6,0 mm
Shank square: 4,9 mm
Thread type: Metric thread
Type: GLT-1
Twist angle: 45° (right)
DIN: 371
Coolant supply: External
Nominal diameter: 5 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: B582A601.0050

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • Short twist drill bit DIN 338 type W HSS ground 2.1 mm
  •
    Maschinen-Gewindebohrer Enorm 1-Z/E-X-PM-GLT-1 M4-6HX
    63,57 €
  • Maschinen-Gewindebohrer Enorm 1-Z/E-X-PM-GLT-1 M8-6HX
    93,83 €

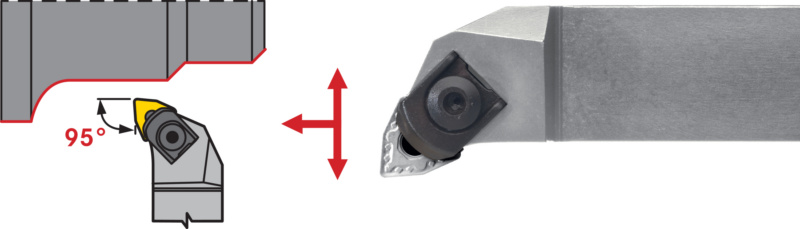

  • ATORN insert holder DCLN, negative, right, DCLN R/L 3232 P12
