ATORN MT HSSE shape E blind hole 6H M24

ATORN MT HSSE shape E blind hole 6H M24

ATORN MT HSSE shape E blind hole 6H M24
Item no: 1014405 124

Online price:

Still in stock: 3

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the steel, stainless steel, non-ferrous metals and cast iron material groups up to a strength of 1000 N/mm²

Execution
Structural dimensions according to: DIN 371 = reinforced shank (to M10), DIN 376 = protruding shank (from M12)

Advantage
  • Universal use for maximum flexibility
  • Innovative cutting geometry ensures high process reliability even under difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M24
Tolerance of screw taps (Tol.): 6H
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: E
Length: 160 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 3 mm
Twist angle: 40° (right)
DIN: 376
Shank diameter: 18 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 21 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 14,5 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 0
fitness not iron total (ISO N): 0
fitness Titan/Nickel/Super total (ISO S): 0
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11291211

EAN no.: 4066107001216

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN die HSS EN 22568 MF-L 18x1.5 6g outer diameter 45 mm
    113,62 €
  • ATORN MT HSSE shape C blind hole 6H M39
    456,61 €
  • ATORN MT HSSE shape C blind hole 6H M52
    995,61 €
  • ATORN MT HSSE shape C blind hole 6H BM 10
    26,26 €
  • ATORN boring bar E06-SCLDR04-AMS
    256,28 €
  • Precision short chuck ewe DIN 69871A SK40 2.5-16 mm
    548,73 €
  • Precision short chuck ewe DIN 69871 A SK50 1-13 mm
    855,40 €

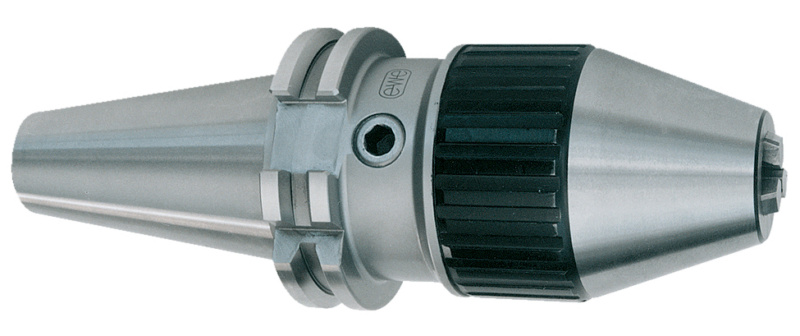

  • Precision short drill chuck Mimatic DIN 69871 AD SK40 2.5-16 mm
