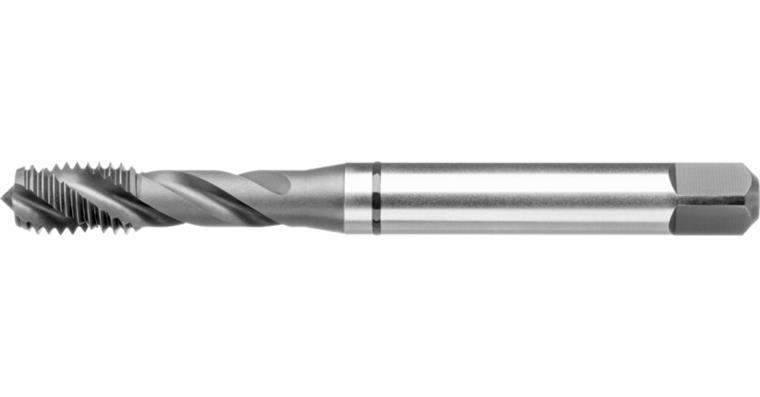

ATORN MT HSSE shape E blind hole 6H M16

ATORN MT HSSE shape E blind hole 6H M16

ATORN MT HSSE shape E blind hole 6H M16
Item no: 1014405 116

Online price:

Still in stock: 3

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the steel, stainless steel, non-ferrous metals and cast iron material groups up to a strength of 1000 N/mm²

Execution
Structural dimensions according to: DIN 371 = reinforced shank (to M10), DIN 376 = protruding shank (from M12)

Advantage
  • Universal use for maximum flexibility
  • Innovative cutting geometry ensures high process reliability even under difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M16
Tolerance of screw taps (Tol.): 6H
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: E
Length: 110 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 2 mm
Twist angle: 40° (right)
DIN: 376
Shank diameter: 12 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 14 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 0
fitness not iron total (ISO N): 0
fitness Titan/Nickel/Super total (ISO S): 0
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11291209

EAN no.: 4066107001193

Product Datasheet Datasheet cutting values
