ATORN screw tap HSSE-PM TiN B 371 50° M3 ISO2 S 2.5xD CNC UNI

ATORN screw tap HSSE-PM TiN B 371 50° M3 ISO2 S 2.5xD CNC UNI

ATORN screw tap HSSE-PM TiN B 371 50° M3 ISO2 S 2.5xD CNC UNI
Item no: 1014404 101

Online price:

Still in stock: 5

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the steel, stainless steel, non-ferrous metals and cast iron material groups up to a strength of 1300 N/mm².

Execution
Structural dimensions according to: DIN 371 = reinforced shank (to M10), DIN 376 = protruding shank (from M12)

Advantage
Long service life and high level of process reliability thanks to innovative cutter geometry and universal application for maximum flexibility in use


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M3
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 56 mm
Cutting material: HSSE-PM
Surface: TiN
Pitch: 0,5 mm
Twist angle: 50° (right)
DIN: 371
Shank diameter: 3,5 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 2,5 mm
Type: UNI 50 Control
Coolant supply: External
Shank square: 2,7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10479557

EAN no.: 4050293188356

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN hand tap MS HSSE D 352 0° M16 2 mm ISO2 D/S 3xD VA
    67,58 €
  • ATORN HSSE machine tap set M3-12 HSSE DL
  •
    ATORN screw tap SC TICN D DIN 371 0° M3 0.5 mm ISO2 x D/S 1.5xD CNC H
    118,20 €
  • ATORN screw tap HSSE-PM TiN B 371 50° M10 ISO2 S 2.5xD CNC UNI
    41,20 €
  • Blind hole screw tap G DIN 5156 40° shape C 2.5xD HSS-E 1/8 inch
    35,73 €
  • ATORN thread milling cutter, SC-TIAlN TH/BH 2xD 11 16.0 mm 105 mm HA UNI
  •
    ATORN SC mini radius cutter, diameter 1.5 x 1.2 x 16.0 x 50 mm, HA shaft
    36,77 €
  • ATORN solid carbide end mill T4 long HA, 12.0 x 36 x 46 x 93mm, coated
  •
    Knurling wheel DIN 403 PM type AA dia. x width x hole 20x8x6 mm pitch 0.6 mm
    49,39 €

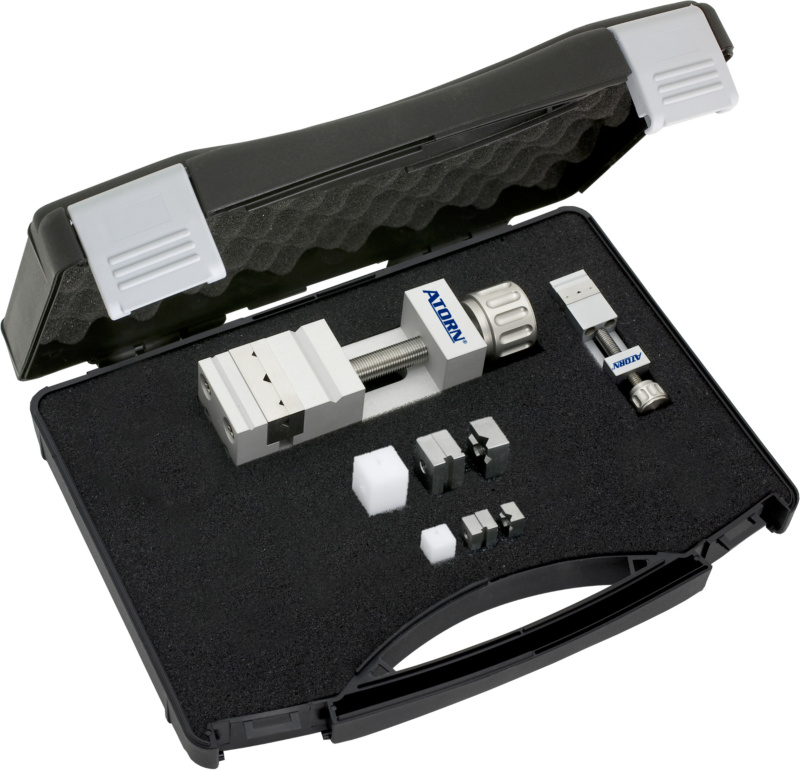

  • ATORN mini vice case set size 1 + size 3, 235 x 185 x 48 mm
  •
