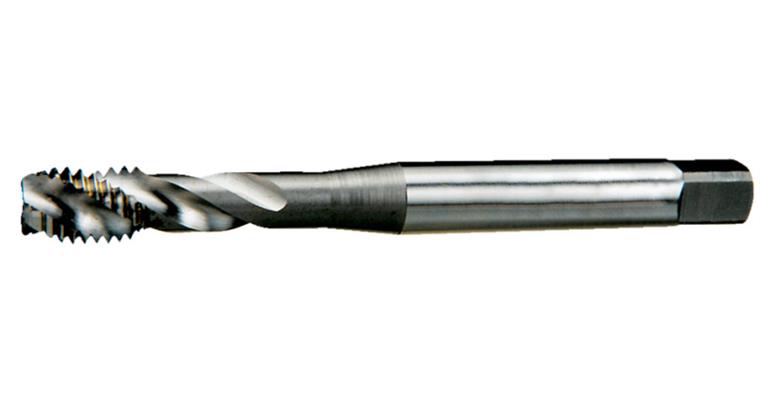

Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E M3

Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E M3

Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E M3
Item no: 1014401 104

Online price:

Available for immediate delivery

Application
- Metric thread
- Blind holes
- Max. drilling depth 2.5xD
- Steels up to 800 N/mm²

Execution
  • Tolerance field 6H
  • DIN 371
  • Right-hand spiral flute approx. 40°
  • DIN chamfer shape C (2-3 turns)
  • HSS-E


Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: M3
Max. thread depth: 1.5xD
Thread dimension: M3
Pitch: 0,5 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 2.5xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: C
Length: 56 mm
Cutting edge length: 5 mm
Core hole diameter: 2,50 mm
Shank diameter: 3,5 mm
Shank square: 2,7 mm
Thread type: Metric thread
Twist angle: 40°
DIN: 371
Coolant supply: External
Nominal diameter: 3 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting
