Through hole screw tap M DIN 376 shape B 2xD HSS-E left-cutting M12

Through hole screw tap M DIN 376 shape B 2xD HSS-E left-cutting M12

Through hole screw tap M DIN 376 shape B 2xD HSS-E left-cutting M12
Item no: 1014372 112

Online price:

Still in stock: 3

Application
- Metric thread
- Through holes
- Max. drilling depth 2xD
- Steels up to 800 N/mm²

Execution
  • Left-hand cutting
  • Strong spiral point tap
  • DIN type B (3.5-5 chamfer threads)
  • Tolerance range 6H
  • DIN 371/376
  • HSSE


Brand: ATORN
Material to be processed: Steel
Thread type: M-L
Thread dimension: M12
Thread type x nominal diameter: M-L12
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance hole ≤ 2xD
Lead angle shape: B
Length: 220 mm
Cutting material: HSSE
Surface: Uncoated
Pitch: 1,75 mm
Twist angle: 0°
DIN: 376
Shank diameter: 9 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 10,20 mm
Coolant supply: External
Shank square: 7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290085

EAN no.: 4050293131802

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • Machine tap similar to DIN 2181 straight HSS-E short NPT 1/4
    64,58 €
  • Machine tap similar to DIN 2181 straight HSS-E short NPT 3/4
    136,81 €
  • Through hole screw tap M Synchro DIN 371 shape B 3xD HSS-E-PM-TiCN M10
    69,07 €
  • Through hole screw tap M DIN 371 shape B 2xD HSS-E left-cutting M10
    50,05 €
  • Through hole screw tap M DIN 376 shape B 2xD HSS-E left-cutting M14
    90,78 €
  • Through hole screw tap M DIN 376 shape B 2xD HSS-E left-cutting M16
  •
    Through hole screw tap M DIN 376 shape B 2xD HSS-E left-cutting M20
  •

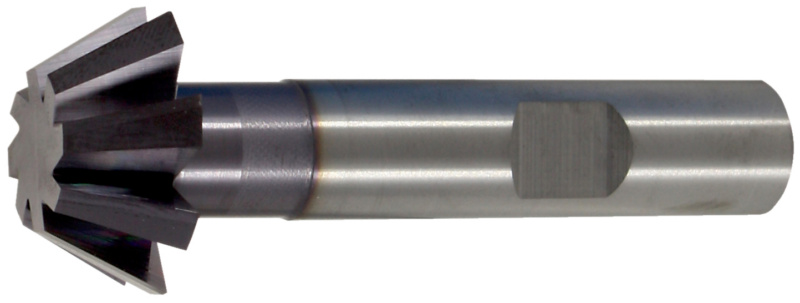

    SC angle cutter 60° shape C 6 cttng edges DIN 6535 HB Alcrona L=60 mm di 16 mm
