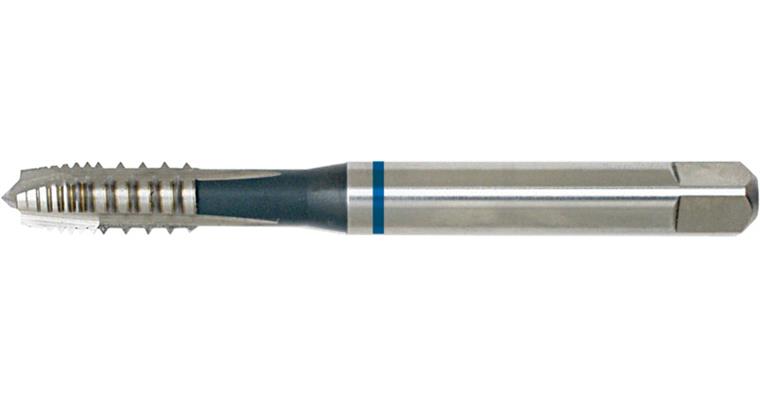

Through hole screw tap M DIN 376 shape B 3xD HSS-E interrupted teeth M12

Through hole screw tap M DIN 376 shape B 3xD HSS-E interrupted teeth M12

Through hole screw tap M DIN 376 shape B 3xD HSS-E interrupted teeth M12
Item no: 1014344 112

Online price:

Still in stock: 8

Application
- Metric thread
- Through holes
- Max. drilling depth 3xD
- Steels up to 1,200 N/mm²

Execution
  • Spiral point tap
  • Torque reduction and improved distribution of lubricant due to interrupted teeth
  • Tolerance range 6H
  • DIN 371/376
  • HSSE

Notes
Particularly suitable for materials with a tendency to jam easily and for thin-walled parts as no material deformation occurs due to low friction resistance.

Brand: ATORN
Material to be processed: Steel
Thread type: Metric thread
Thread type x nominal diameter: M12
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 110 mm
Cutting material: HSSE
Surface: Uncoated
Pitch: 1,75 mm
Twist angle: 0°
DIN: 376
Shank diameter: 9 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 10,2 mm
Coolant supply: External
Shank square: 7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 2
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290146

EAN no.: 4050293132205

Product Datasheet Datasheet cutting values
