Through hole screw tap M DIN 371 shape B 3xD HSS-E-TiCN up to 1,400 N/mm² M6

Through hole screw tap M DIN 371 shape B 3xD HSS-E-TiCN up to 1,400 N/mm² M6

Through hole screw tap M DIN 371 shape B 3xD HSS-E-TiCN up to 1,400 N/mm² M6
Item no: 1014341 206

Online price:

Available for immediate delivery

Application
- Metric thread
- Through holes
- Max. drilling depth 3xD
- Special point geometry for steels up to 1,400 N/mm²

Execution
  • Spiral point tap
  • Tolerance range 6H
  • DIN 371/DIN 376
  • DIN type B (3.5-5 chamfer threads)
  • HSSE/TiCN-coated

Notes
The problem solver for high-strength materials.

Brand: ATORN
Material to be processed: Steel
Thread type: Metric thread
Thread type x nominal diameter: M6
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 80 mm
Cutting material: HSSE
Surface: TiCN
Pitch: 1 mm
Twist angle: 0°
DIN: 371
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 5,00 mm
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

Versions
loading
Keywords:

You might also be interested in this

  • Through hole screw tap M DIN 376 shape B 3xD HSS-E-TiCN up to 1,400 N/mm² M16
  •
    Through hole screw tap M DIN 376 shape B 3xD HSS-E-TiCN up to 1,400 N/mm² M20
  •
    Through hole screw tap M DIN 371 shape B 3xD HSS-E-TiCN up to 1,400 N/mm² M5
  •
    Through hole screw tap M DIN 371 shape B 3xD HSS-E-TiCN up to 1,400 N/mm² M3
    17,86 €
  • ATORN screw tap HSSE-PM TiAlN C 371 10° MF10 1 mm ISO2 x S 2.0xD CNC
  •
    Through hole screw tap M DIN 376 shape B 3xD HSS-E-TiCN up to 1,400 N/mm² M12
  •
    Through hole screw tap M DIN 371 shape B 3xD HSS-E-TiCN up to 1,400 N/mm² M4
  •
    ATORN screw tap HSSE B 371 0° M3 0.5 mm ISO2 3xD
  •
    ATORN carbide indexable insert DCGT 11T300-FFM APM20T
    13,61 €
  • ATORN cntrsnk, 90°, HSSE-TiN, single-bld cutter, T=1 15.0-20.0mm, 90mmx12mm, HA
  •
    Through hole screw tap M DIN 371 shape B 3xD HSS-E-TiCN up to 1,400 N/mm² M10
  •

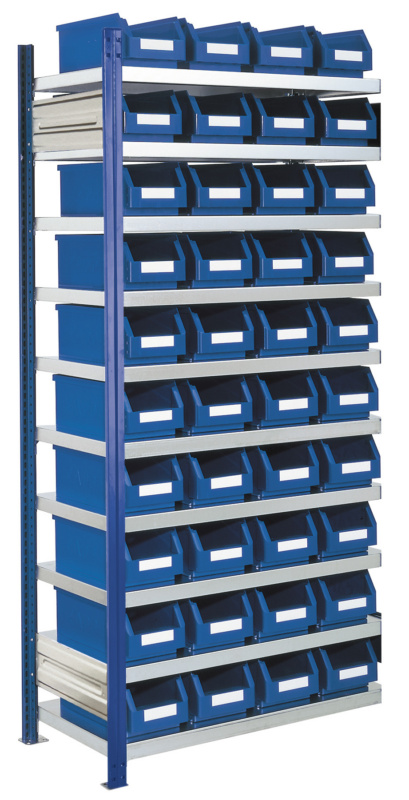

    Storage rack 1000x400 H=2000 add-on bay 10 shelves 40 easy-view storage bins
