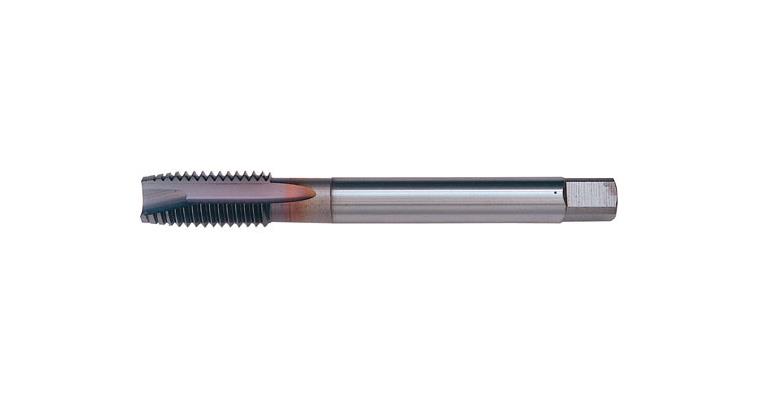

Through hole screw tap M DIN 376 shape B 2xD HSS-E-TiCN for VA steels M14

Through hole screw tap M DIN 376 shape B 2xD HSS-E-TiCN for VA steels M14

Through hole screw tap M DIN 376 shape B 2xD HSS-E-TiCN for VA steels M14
Item no: 1014334 210

Online price:

Available for immediate delivery

Application
Metric thread
Through holes
Max. drilling depth 2xD
VA steels up to 1,000 N/mm2

Execution
Spiral point

Notes
Cost-effective design.

Brand: LIZZARD
Material to be processed: Stainless steel
Thread type x nominal diameter: M14
Max. thread depth: 2xD
Pitch: 2 mm
Cutting material: HSSE
Surface: TiCN
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 110 mm
Cutting edge length: 26 mm
Core hole diameter: 12,00 mm
Shank diameter: 11 mm
Shank square: 9 mm
Thread type: Metric thread
Twist angle: 0°
DIN: 376
Coolant supply: External
Nominal diameter: 14 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting
