ATORN machine tap HSSE HL, 6HX, 45 degrees, form C, long, M12

ATORN machine tap HSSE HL, 6HX, 45 degrees, form C, long, M12

ATORN machine tap HSSE HL, 6HX, 45 degrees, form C, long, M12
Item no: 1014325 207

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in steel, stainless steel, non-ferrous metals, cast iron and special alloys up to 1200 N/mm².

Advantage
  • Ideal for long service life requirements and materials that are difficult to machine, such as stainless steel
  • Innovative cutting geometry and ULTRA HL coating guarantee high process reliability even under difficult machining conditions
  • h6 uniform shank for clamping in shrink-fit chucks
  • HSSE PM cutting material for longer service life


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M12
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 220,00 mm
Cutting material: HSSE
Surface: ULTRA HL
Pitch: 1,75 mm
Twist angle: 45° (right)
Shank diameter: 9 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 10,20 mm
Type: UNI MAX 45HL Control
Coolant supply: External
Shank square: 7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10487150

EAN no.: 4050293650129

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN machine tap HSSE HL, 6GX, 0 degrees, form B, M18
  •
    ATORN machine tap HSSE HL, 6GX, 0 degrees, form B, M24
    270,04 €
  • ATORN machine tap HSSE HL, 7GX, 0 degrees, form B, M18
    172,86 €
  • ATORN machine tap HSSE HL, 7GX, 45 degrees, form C, M4
    50,48 €
  • ATORN machine tap HSSE VA, 6HX, 0 degrees, form B, M12
    37,75 €
  • ATORN SCLC boring bar, solid carbide, positive, right, C 04 G SCLC R/L 03
    301,00 €
  • 1/2 inch hex impact screwdriver bit CV special steel short AF 27 mm
    9,38 €
  • 1/2 inch hex impact screwdriver bit CV special steel long AF 18 mm
  •
    ATORN bit C6.3 Tri-wing 4 x 25 mm
    4,51 €
  • Tischgestell H840 x B1500 x T750 mm absenkbar
    1.288,00 €

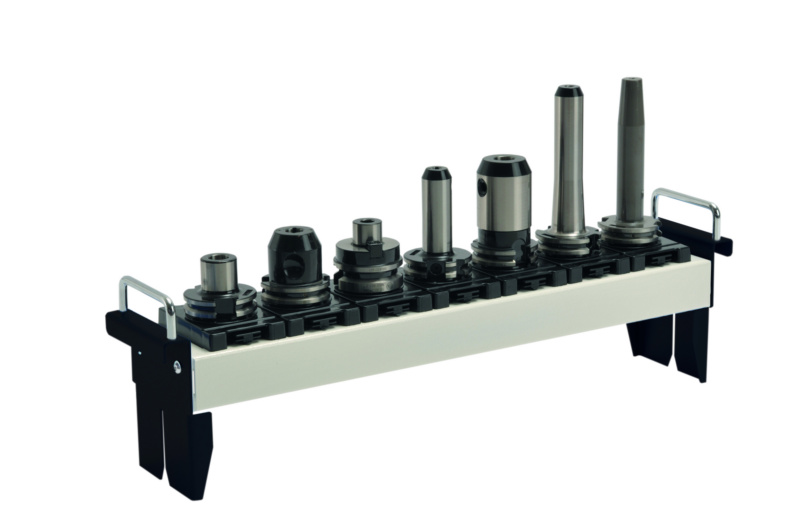

  • CNC tool holder support 180X620X120
