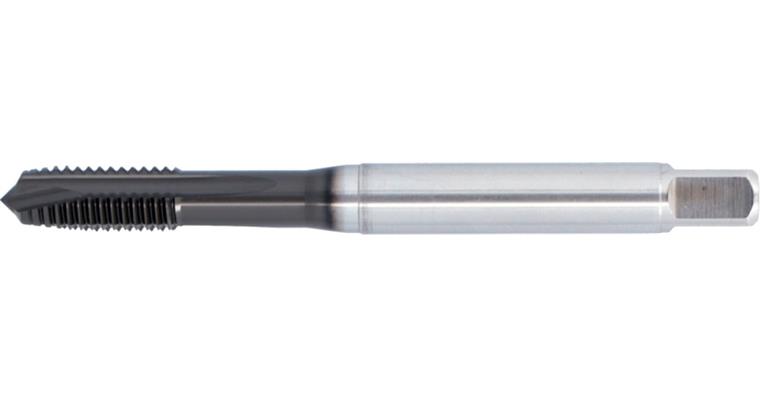

ATORN machine tap HSSE HL, 7GX, 0 degrees, form B, M16

ATORN machine tap HSSE HL, 7GX, 0 degrees, form B, M16

ATORN machine tap HSSE HL, 7GX, 0 degrees, form B, M16
Item no: 1014323 111

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC machines or conventional machines in through holes in steel, stainless steel, non-ferrous metals, cast iron and special alloys up to 1200 N/mm².

Advantage
  • Ideal for long service life requirements and materials that are difficult to machine, such as stainless steel
  • Innovative cutting geometry and ULTRA HL coating guarantee high process reliability even under difficult machining conditions


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M16
Tolerance of screw taps (Tol.): 7GX
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 110,00 mm
Cutting material: HSSE
Surface: ULTRA HL
Pitch: 2 mm
Twist angle: 0°
DIN: 376
Shank diameter: 12 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 14,00 mm
Type: UNI MAX 45HL Control
Coolant supply: External
Shank square: 9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10487066

EAN no.: 4050293649284

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN test pin RSB TC1 0.52 mm x 40 mm
  •
    ATORN test pin RSB TC1 0.71 mm x 40 mm
    14,81 €
  • ATORN test pin RSB TC1 1.71 mm x 70 mm
  •
    ATORN test pin RSB TC1 12.1 mm x 70 mm
  •
    ATORN solid carbide drill UNI TiAlNplus 3xD with IC 4.65 mm straight shank HA
    60,60 €
  • ATORN machine tap HSSE HL, 6GX, 45 degrees, form C, M2
    50,48 €
  • ATORN machine tap HSSE HL, 6GX, 45 degrees, form C, M2.5
    48,16 €
  • ATORN RockTec PRO end mill, 6x16x20x57 mm T=2 HA
  •
    ATORN corundum abrasive fabric sheets (AO) G120 230 x 280 mm
  •

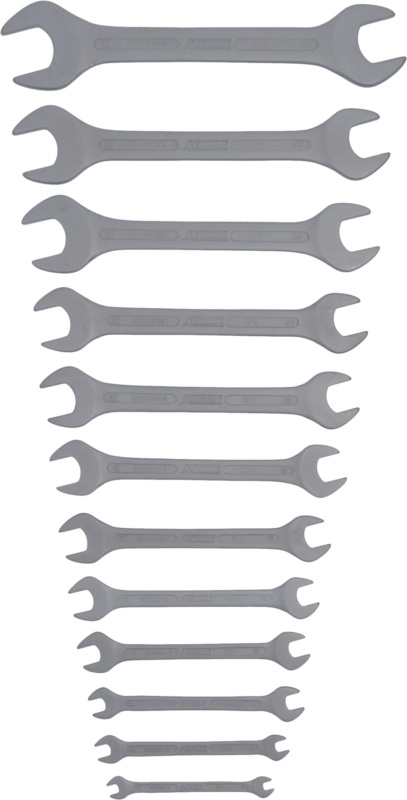

    ATORN double open-end wrench set 12 pieces 6-32 mm DIN 3110
  •
