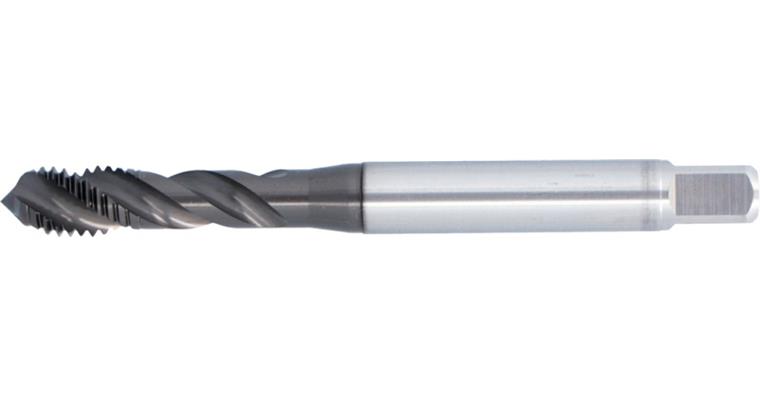

ATORN machine tap HSSE HL, 6GX, 45 degrees, form C, M2

ATORN machine tap HSSE HL, 6GX, 45 degrees, form C, M2

ATORN machine tap HSSE HL, 6GX, 45 degrees, form C, M2
Item no: 1014322 201

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in steel, stainless steel, non-ferrous metals, cast iron and special alloys up to 1200 N/mm².

Advantage
  • Ideal for long service life requirements and materials that are difficult to machine, such as stainless steel
  • Innovative cutting geometry and ULTRA HL coating guarantee high process reliability even under difficult machining conditions


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M2
Tolerance of screw taps (Tol.): ISO 3X (6GX)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 45,00 mm
Cutting material: HSSE
Surface: ULTRA HL
Pitch: 0,4 mm
Twist angle: 45° (right)
DIN: 371
Shank diameter: 2,80 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 1,60 mm
Type: UNI MAX 45HL Control
Coolant supply: External
Shank square: 2,10 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10487040

EAN no.: 4050293649024

Product Datasheet Datasheet cutting values
