ATORN machine tap HSSE HL, 6GX, 0 degrees, form B, M5

ATORN machine tap HSSE HL, 6GX, 0 degrees, form B, M5

ATORN machine tap HSSE HL, 6GX, 0 degrees, form B, M5
Item no: 1014322 105

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC machines or conventional machines in through holes in steel, stainless steel, non-ferrous metals, cast iron and special alloys up to 1200 N/mm².

Advantage
  • Ideal for long service life requirements and materials that are difficult to machine, such as stainless steel
  • Innovative cutting geometry and ULTRA HL coating guarantee high process reliability even under difficult machining conditions


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M5
Tolerance of screw taps (Tol.): ISO 3X (6GX)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 70,00 mm
Cutting material: HSSE
Surface: ULTRA HL
Pitch: 0,8 mm
Twist angle: 0°
DIN: 371
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 4,20 mm
Type: UNI MAX 45HL Control
Coolant supply: External
Shank square: 4,90 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10487029

EAN no.: 4050293648911

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN machine tap HSSE HL, 6GX, 0 degrees, form B, M3
    44,89 €
  • ATORN machine tap HSSE HL, 6HX, 0 degrees, form B, long, M6
    78,86 €
  • ATORN machine tap HSSE VA, 6HX, 0 degrees, form B, M8
    23,48 €
  • Blind hole screw tap M DIN 376 35° shape C 2xD HSS-E M6
    11,32 €
  • ATORN cut-off and grooving blade ABE-L 26-ASS02-C with internal cooling
    185,46 €
  • ATORN cut-off and grooving blade ABE-N 26-ASS04-C with internal cooling
    185,46 €
  • ATORN 3-way pyramid, incl. Easy Point system, body height 68 mm
  •
    Universal-Schaltschrankschlüssel lange Kette + Bit 90x60 mm
  •

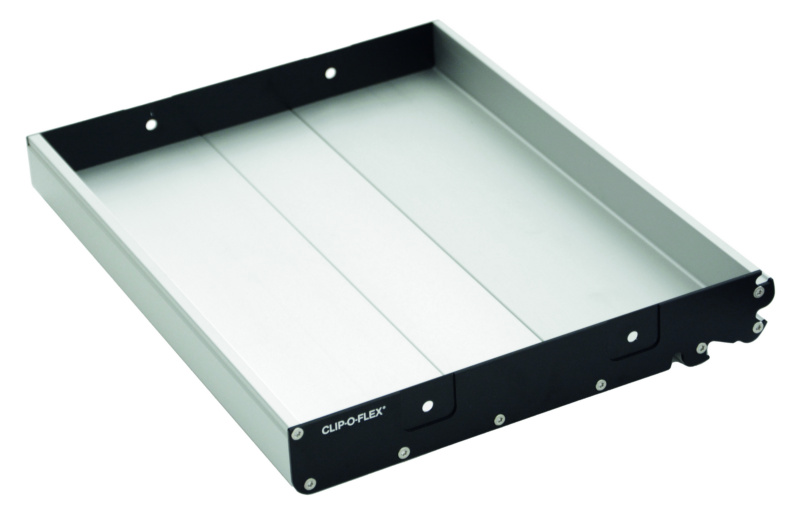

    COF tray 2.0 600x400 black
    105,00 €

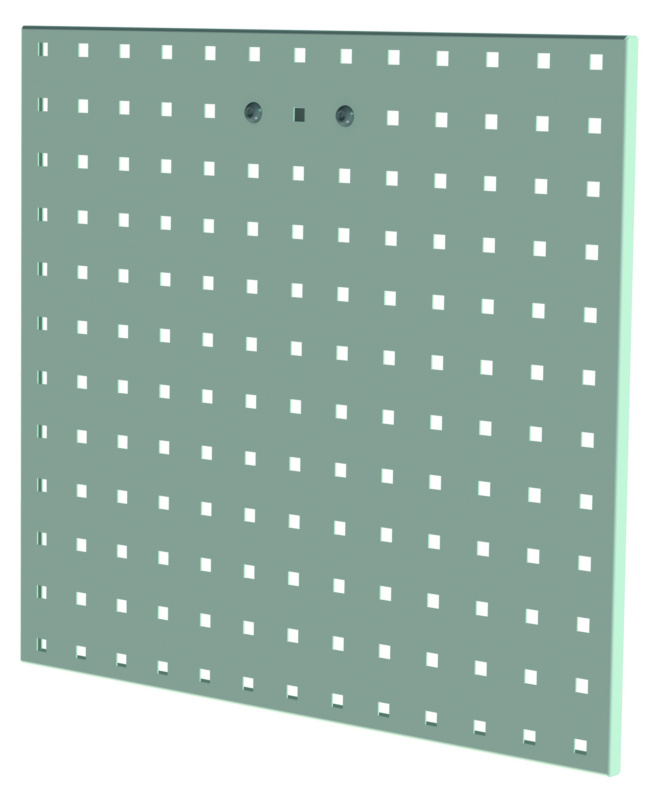

  • COF perforated metal plate 1,000X450 mm (WxH)
    92,00 €
  • COF perforated metal plate 450x1,000 mm (WxH)
    92,00 €

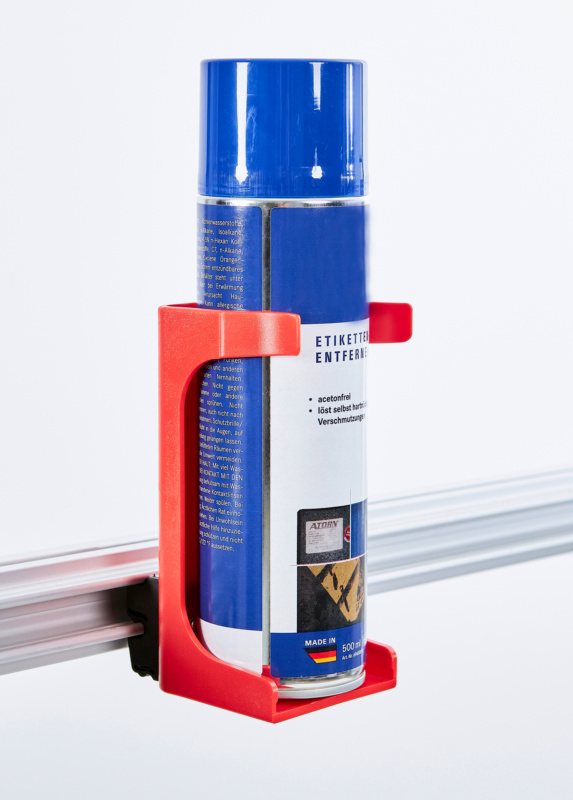

  • CLIP-O-FLEX Spraydosenhalterung passend für COF Halteschiene
