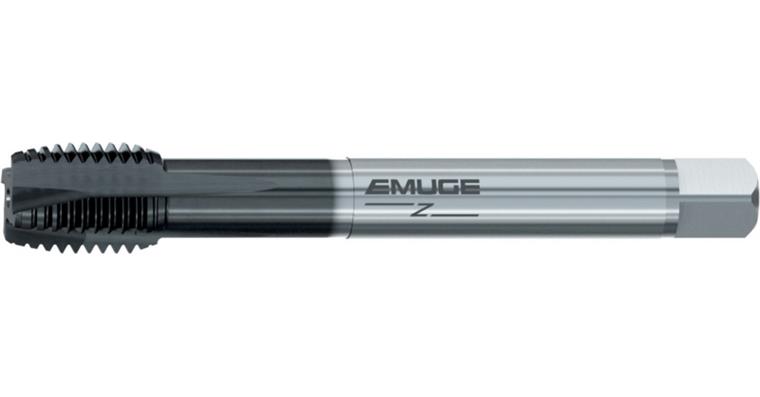

Maschinen-Gewindebohrer Rekord 2B-Z-PM-GLT-1 M12-6HX

Maschinen-Gewindebohrer Rekord 2B-Z-PM-GLT-1 M12-6HX

Maschinen-Gewindebohrer Rekord 2B-Z-PM-GLT-1 M12-6HX
Item no: 1014321 110

Online price:

Available in 5-7 working days.

Application
- Metrisches Gewinde
- Durchgangslöcher
- Max. Bohrtiefe 3xD
- Für universelle Anwendung in nahezu allen Werkstoffen

Execution
  • Für den Einsatz in CNC-gesteuerten Maschinen ausgelegt.
  • Erhöhte Toleranz für mehr Standweg in abrasiven oder klemmenden Werkstoffen.
  • Konisch abgesetztes Führungsgewinde
  • Längere Nuten
  • DIN-Anschnitt Form B (4-5 Gänge)
  • HSSE-PM GLT-1


Brand: EMUGE
Material to be processed: Universal use
Thread type x nominal diameter: M12
Max. thread depth: 3xD
Thread dimension: M12
Pitch: 1,75 mm
Cutting material: HSSE-PM
Surface: TiAlN plus
Hole type: Clearance hole ≤ 3xD
Tolerance of screw taps (Tol.): 6HX
Lead angle shape: B
Length: 110 mm
Cutting edge length: 18 mm
Core hole diameter: 10,20 mm
Shank diameter: 9,0 mm
Shank square: 7,0 mm
Thread type: Metric thread
Type: GLT-1
Twist angle: 0°
DIN: 376
Coolant supply: External
Nominal diameter: 12 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: C020A601.0112

Product Datasheet Datasheet cutting values
