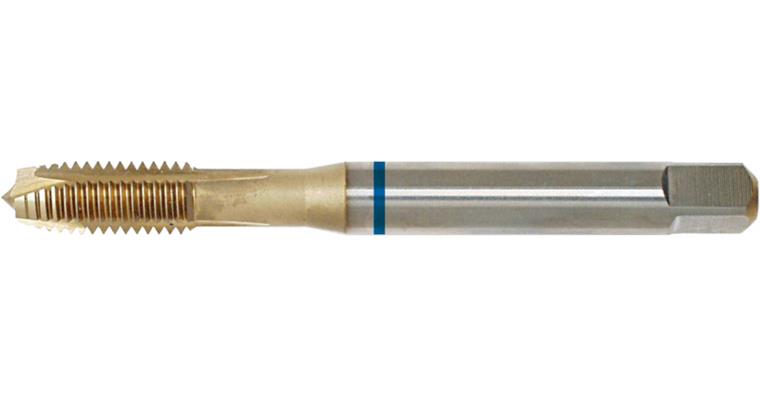

Through hole screw tap M DIN 376 shape B 3xD HSS-E-TiN M18

Through hole screw tap M DIN 376 shape B 3xD HSS-E-TiN M18

Through hole screw tap M DIN 376 shape B 3xD HSS-E-TiN M18
Item no: 1014293 118

Online price:

Available in 6-8 working days.

Application
- Metric thread
- Through holes
- Max. drilling depth 3xD
- Steels up to 850 N/mm2

Execution
  • Spiral point tap
  • Tolerance range 6H
  • DIN 371/DIN 376
  • DIN type B (3.5-5 chamfer threads)
  • HSSE

Advantage
Reduced buildup of material deposits due to TiN coating


Brand: ATORN
Material to be processed: Steel
Thread type: Metric thread
Thread dimension: M18
Thread type x nominal diameter: M18
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 125 mm
Cutting material: HSSE
Surface: TiN
Pitch: 2,5 mm
Twist angle: 0°
DIN: 376
Shank diameter: 14 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 15,50 mm
Coolant supply: External
Shank square: 11 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290050

EAN no.: 4050293131581

Product Datasheet Datasheet cutting values
