Machine tap DIN 40432 straight HSS-E short PG 9

Machine tap DIN 40432 straight HSS-E short PG 9

Machine tap DIN 40432 straight HSS-E short PG 9
Item no: 1014265 102

Online price:

Still in stock: 2

Application
For well-machinable steels up to approx. 800 N/mm² strength, Al-Si alloys up to 5 % Si, for through holes and blind holes.

Execution
For PG armoured pipe thread, flange angle 80°, right-cutting, straight-grooved, DIN chamfer shape C (2-3 turns)

Notes
For blind holes, drill core holes at least 1 x d1 deeper.

Brand: LIZZARD
Material to be processed: Steel
Thread dimension: PG9
Number of thread starts per inch: 18
Cutting material: HSSE
Surface: Uncoated
Hole type: Clearance/blind hole ≤ 2xD
Lead angle shape: C
Length: 70 mm
Cutting edge length: 22 mm
Core hole diameter: 14,00 mm
Shank diameter: 12 mm
Shank square: 9 mm
Thread type: PG
Twist angle: 0°
DIN: 40432
Coolant supply: External
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE TiCN B 371 0° M6 1.0 mm ISO2 D 3xD CNC PH
  •
    Hand reamer DIN 859 spiral-fluted HSS 10.0 mm, adjustable
    102,06 €
  • Hand reamer DIN 859 spiral-fluted HSS 12.0 mm, adjustable
  •
    Rivet hole reamer DIN 311 spiral-fluted HSS 27.0 mm
  •
    ATORN screw tap HSSE vaporised MF20 x 1.5 mm shape C for blind hole
  •
    ATORN screw tap HSSE-PM ULTRA HL B 374 0° MF x 1.5 ISO2 3xD CNC UNI
  •
    ATORN screw tap HSSE V3 C 40° MF8 x 1 ISO2 2.5xD CNC UNI
  •
    Machine tap Enorm 2-Z-X-PM-GLT-1 7/16-14 UNC-2BX
  •

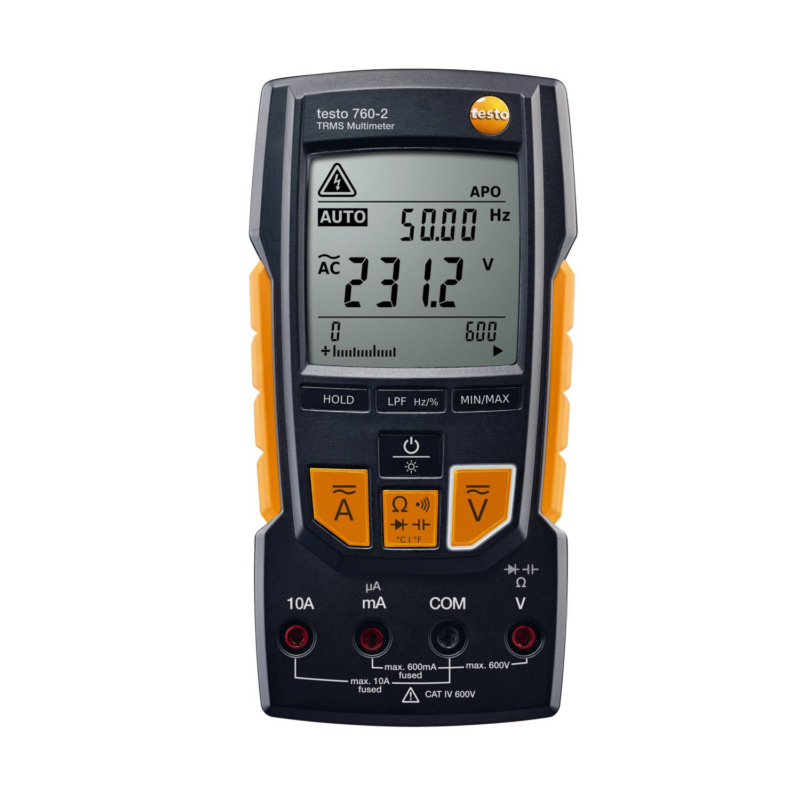

    Multimeter testo 760-2 TRMS including 1 set of measuring leads
  •
