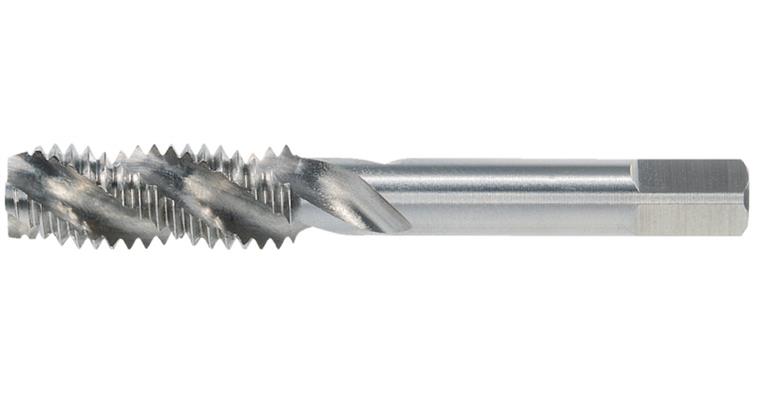

Machine tap DIN 352 spiral-fluted 35° HSS-E short M 12

Machine tap DIN 352 spiral-fluted 35° HSS-E short M 12

Machine tap DIN 352 spiral-fluted 35° HSS-E short M 12
Item no: 1014115 112

Online price:

Available in 5-7 working days.

Application
For base holes (blind holes). Single-cut tap for unalloyed and low-alloy steels up to 800 N/mm² strength, low-alloy steel and malleable iron. For the production of metric threads DIN 13.

Execution
  • Right-cutting
  • Right-hand spiral grooves approx. 35°
  • Chamfer shape C


Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: M12
Max. thread depth: 2.5xD
Pitch: 1,75 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 2.5xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: C
Length: 75 mm
Cutting edge length: 29 mm
Core hole diameter: 10,20 mm
Shank diameter: 9 mm
Shank square: 7 mm
Thread type: Metric thread
Twist angle: 35° (right)
DIN: 352
Coolant supply: External
Nominal diameter: 12 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting
