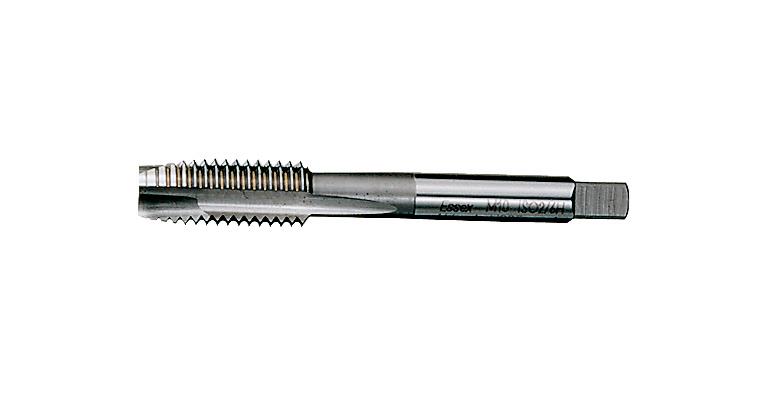

Machine tap DIN 352 straight HSS-E short M 4

Machine tap DIN 352 straight HSS-E short M 4

Machine tap DIN 352 straight HSS-E short M 4
Item no: 1014110 206

Online price:

Still in stock: 8

Application
For through-bores. Single-cut tap for unalloyed and low-alloy steels up to 800 N/mm² strength, low-alloy steel and malleable iron. For the production of metric threads DIN 13.

Execution
  • Straight-grooved
  • Right-cutting
  • With spiral point
  • Chamfer shape B


Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: M4
Max. thread depth: 1.5xD
Thread dimension: M4
Pitch: 0,7 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Clearance/blind hole ≤ 1.5xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 45 mm
Cutting edge length: 13 mm
Core hole diameter: 3,30 mm
Shank diameter: 4,5 mm
Shank square: 3,4 mm
Thread type: Metric thread
Twist angle: 0°
DIN: 352
Coolant supply: External
Nominal diameter: 4 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting
