RH reamer RPS400J3D6 shank size 1 to drilling depth 3xD polygonal insert seat

RH reamer RPS400J3D6 shank size 1 to drilling depth 3xD polygonal insert seat

RH reamer RPS400J3D6 shank size 1 to drilling depth 3xD polygonal insert seat
Item no: 1013535 101

Online price:

Available in 5-7 working days.

Application
Reduces processing times thanks to extremely high cutting speeds, higher feed rates and greater material removal volumes.

Execution
  • Highly stable connection with polygonal plate seat
  • Cutting plates for through holes and blind holes
  • Long service life and high precision
  • High concentricity
  • Simple blade replacement
  • The internal coolant feed is routed directly to the first-cut area on the blade via a baffle plate
  • Good chip removal even in blind holes
  • Solid carbide/TiAlN-coated


Brand: HHW
Shank diameter (d2 h6): 16 mm
Length (l1): 110 mm
Coolant supply: Internal axial
Cutting speed (aluminium long) suitability: 1
Cutting speed (aluminium long) Vc: 120,00 m/min
Cutting speed (aluminium short) suitability: 1
Cutting speed (aluminium short) Vc: 300,00 m/min
Cutting speed (brass long) suitability: 1
Cutting speed (brass long) Vc: 50,00 m/min
Cutting speed (brass short) suitability: 1
Cutting speed (brass short) Vc: 250,00 m/min
Cutting speed (bronze long) suitability: 1
Cutting speed (bronze long) Vc: 50,00 m/min
Cutting speed (bronze short) suitability: 1
Cutting speed (bronze short) Vc: 250,00 m/min
Cutting speed (cast) suitability: 1
Cutting speed (cast) Vc: 130,00 m/min
Cutting speed (graphite/carbon-fibre reinforced) suitability: 3
Cutting speed (hard 55) suitability: 3
Cutting speed (hard 65) suitability: 3
Cutting speed (nickel) suitability: 3
Cutting speed (plastic) suitability: 3
Cutting speed (steel 1000) suitability: 1
Cutting speed (steel 1000) Vc: 35,00 m/min
Cutting speed (steel 1300) suitability: 1
Cutting speed (steel 1300) Vc: 35,00 m/min
Cutting speed (steel 700) suitability: 1
Cutting speed (steel 700) Vc: 35,00 m/min
Cutting speed (super) suitability: 3
Cutting speed (titanium) suitability: 3
Cutting speed (VA mar) suitability: 1
Cutting speed (VA mar) Vc: 25,00 m/min
Cutting speed (VA off) suitability: 1
Cutting speed (VA off) Vc: 20,00 m/min
Max. cutting edge diameter: 16,20 mm
Max. drilling depth (D): 3xD
Min. cutting edge diameter: 12,00 mm
Min./max. cutting edge diameter: 12.00-16.20 mm
Size: 1
Tool holding device: Polygon

EAN no.: 4024496015238

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • RH reamer RPS400M5D6 shank size 2 to drilling depth 5xD polygonal insert seat
  •
    1/4 inch tool shank G 6.3 output 1/4 inch hex socket D 6.3 chrome-alloy steel
  •
    Vario box end pieces with length adaptation ABS plastic, 2 troughs 24x96x96 mm
  •
    Multiplex index. ins. w/ chamfers w/o chip breaker groove H22+Fire 18.25 mm
  •
    RH reamer RPS400J5D6 shank size 1 to drilling depth 5xD polygonal insert seat
  •
    RH reamer RPS400M3D6 shank size 2 to drilling depth 3xD polygonal insert seat
  •
    Machine reamer DIN 8051 carbide K10 straight-grooved MK1 14 mm
    97,77 €
  • ATORN elec. dial gauge 100 mm meas. range 0.001 mm increment for dynamic meas.
  •
    ATORN test pin RSB TC1 11.16 mm x 70 mm
    28,15 €
  • Reducing sleeve OCA32-15
  •
    Crimphebelzange RG 58,59,62,71 mit 6kant Pressung für Koaxialverbinder
  •

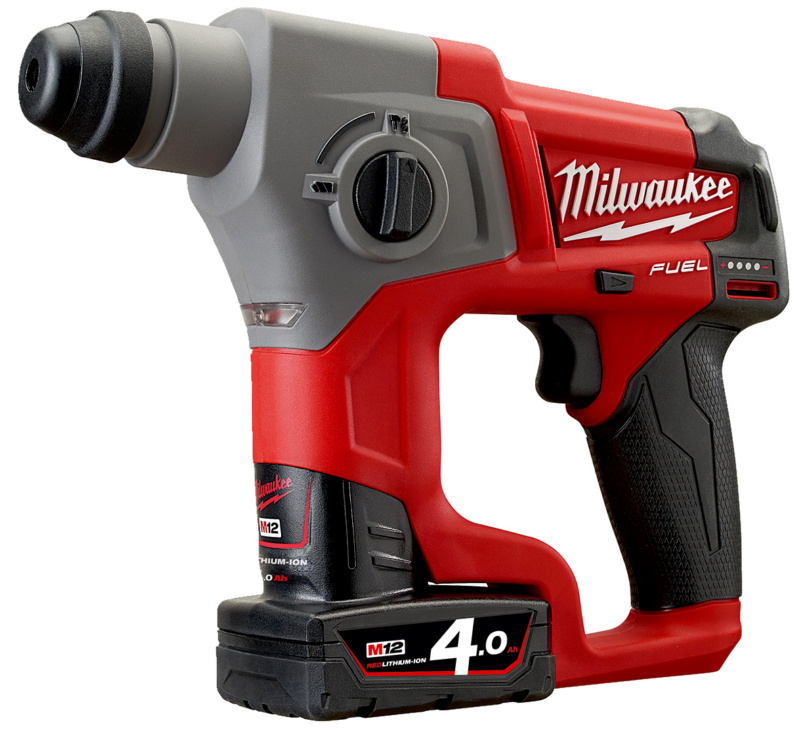

    Li-ion M12 CH cordl. hammer drill 12 volts 4.0 Ah 1.1 J 1.9 kg impct rt 0-6,200
