ATORN HPC reamer, hard, Dulo/Salo, solid carbide TIALN diameter 14.00 mm H7

ATORN HPC reamer, hard, Dulo/Salo, solid carbide TIALN diameter 14.00 mm H7

ATORN HPC reamer, hard, Dulo/Salo, solid carbide TIALN diameter 14.00 mm H7
Item no: 1013524 111

Online price:

Available in 6-8 working days.

Application
For cutting fit tolerances in through holes and blind holes on modern CNC machines with steady tool and workpiece clamping up to 63HRC.

Execution
Straight grooved with extremely variable pitch and internal cooling, type A

Advantage
  • Innovative cutting geometry provides very high stability and process reliability, with very high cutting parameters
  • High-quality solid carbide cutting material and coating ensure a very long service life
  • Radial internal cooling ensures optimum chip removal

Notes
Make sure that tools are accurately and tightly clamped (ideally use a hydro-mechanical clamping chuck or precision collet chuck). Note: Please refer to dimension table.

Brand: ATORN
Material to be processed: Hard material
Cutting edge diameter: 14 mm
Tolerance of fit: H7
Type: HPC HARD
Suitable for through hole: Yes
Form: A
Suitable for blind hole: Yes
Groove type: Straight
Number of cutting edges: 6 PCS
Surface: TiAlN
Cutting material: SC
Projecting length: 83 mm
Length: 130 mm
Shank diameter: 14 mm
Coolant supply: Internal
Min./max. diameter (Ø): 4.0-20.0 mm

ATORN-No.: 12160744

EAN no.: 4050293624595

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN test pin RSB TC1 0.3 mm x 40 mm
    28,89 €
  • Carbide bent lathe chisel DIN 4972/ISO2 right setting angle 45° M20 12 Q
  •
    Carbide bent lathe chisel DIN 4972/ISO2 right setting angle 45° P20 32 Q
  •
    Carbide bent lathe chisel DIN 4972/ISO2 right setting angle 45° P30 16 Q
  •
    Carbide bent lathe chisel DIN 4972/ISO2 right setting angle 45° P30 25 Q
  •
    ATORN pick-up magnet 815 mm, diameter 25 mm
  •

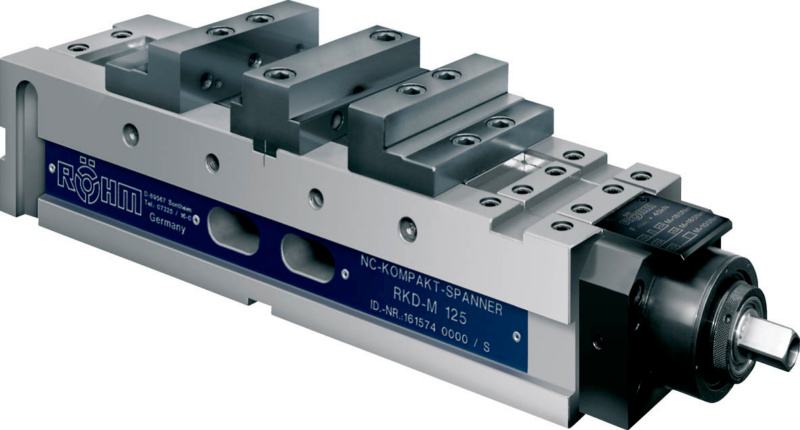

    NC compact clamp, type RKD-M, one-sided working spindle w/jaws, jaw width=92mm
  •
    ATORN double vee blocks with clamp 5-30 mm
    167,32 €
  • ATORN keyhole saw HSS bi-metal, diameter 64 mm, without shaft
    21,24 €
  • ATORN ratchet combination wrench, size 16 mm, with two-sided ratchet function
    22,62 €
  • Multi-purpose lever hoist device AL, rnd stl ch. l/met. hsg lift 1.5m ld 3000kg
    1.356,81 €

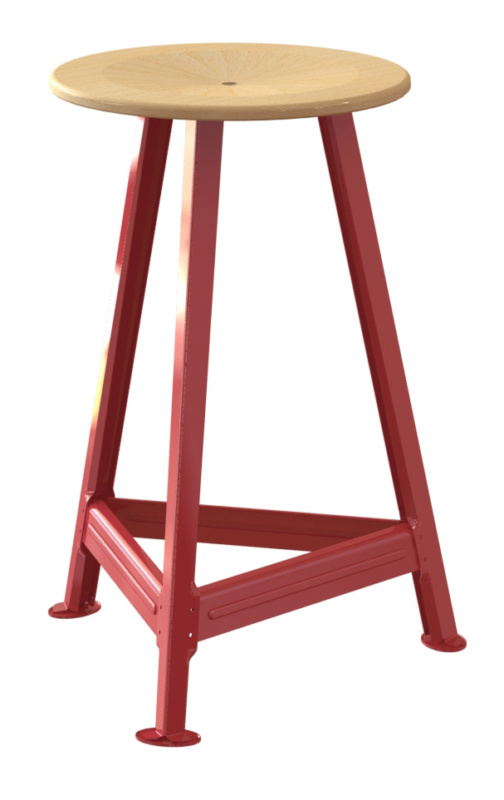

  • LIZZARD Werkstatt-Hocker 3-Bein Gestell H550 mm RAL 3002
