ATORN HPC reamer SC TiAlN T=6 0° 8.01 mm 0–0.005 mm x 100 mm x 16 mm HA (steel)

ATORN HPC reamer SC TiAlN T=6 0° 8.01 mm 0–0.005 mm x 100 mm x 16 mm HA (steel)

ATORN HPC reamer SC TiAlN T=6 0° 8.01 mm 0–0.005 mm x 100 mm x 16 mm HA (steel)
Item no: 1013522 231

Online price:

Available in 6-8 working days.

Application
for cutting fit tolerances in blind holes on modern CNC machines with steady tool and workpiece clamping up to 1300 N/mm².

Execution
Straight grooved with extremely variable pitch and internal cooling, type A

Advantage
  • innovative cutting geometry ensures excellent dimensional accuracy and process reliability for very high cutting parameters
  • high-quality solid carbide cutting material and coating ensure a very long service life
  • Internal cooling ensures optimum chip removal

Notes
Make sure that tools are accurately and tightly clamped (ideally use a hydro-mechanical clamping chuck or precision collet chuck). Note: Please refer to dimension table.

Brand: ATORN
Material to be processed: Steel | Cast metal
Cutting edge diameter: 8,01 mm
Tolerance of fit: 0 / +0,005 mm
Type: HPC UNI
Suitable for through hole: No
Form: A
Suitable for blind hole: Yes
Groove type: Straight
Number of cutting edges: 6 PCS
Surface: TiAlN
Cutting material: SC
Projecting length: 62 mm
Length: 100 mm
Shank diameter: 8 mm
Coolant supply: Internal
Min./max. diameter (Ø): 3.97-20.0 mm

ATORN-No.: 12160179

EAN no.: 4050293395181

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • ATORN HPC reamer, SC TiAlN, T=6 0° 9.97mm 0-0.005mm x 120mm x 20mm HA (steel)
  •
    ATORN HPC reamer SC TiAlN T=6 0° 8.03 mm 0–0.005 mm x 100 mm x 16 mm HA (steel)
  •
    ATORN HPC reamer, SC TiAlN, T=6 0° 9.99mm 0-0.005mm x 120mm x 20mm HA (steel)
  •
    ATORN HPC reamer SC TiAlN T=6 0° 8.02 mm 0–0.005 mm x 100 mm x 16 mm HA (steel)
  •
    ATORN HPC reamer, hard, Dulo/Salo, solid carbide TIALN diameter 9.00 mm H7
    --
  • RED Li-ion M 12 B2 replacement battery 12.0 V/2.0 Ah
  •

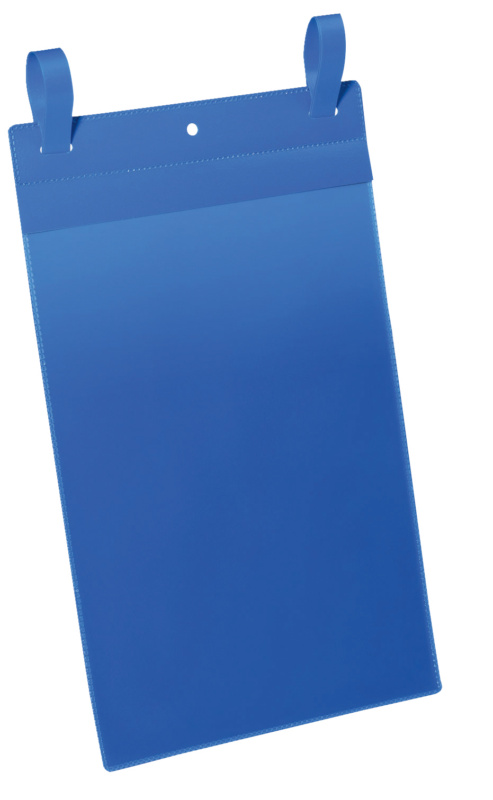

    Crate pocket with fastening strap 50 pieces A4 portrait 210x297 mm blue
  •
    ATORN HPC reamer SC TiAlN T=6 0° 7.99 mm 0–0.005 mm x 100 mm x 16 mm HA (steel)
  •
    ATORN HPC reamer, SC TiAlN, T=6 0° 9.98mm 0-0.005mm x 120mm x 20mm HA (steel)
  •
    ATORN HPC reamer, hard, Dulo/Salo, solid carbide TIALN diameter 6.00 mm H7
    121,27 €

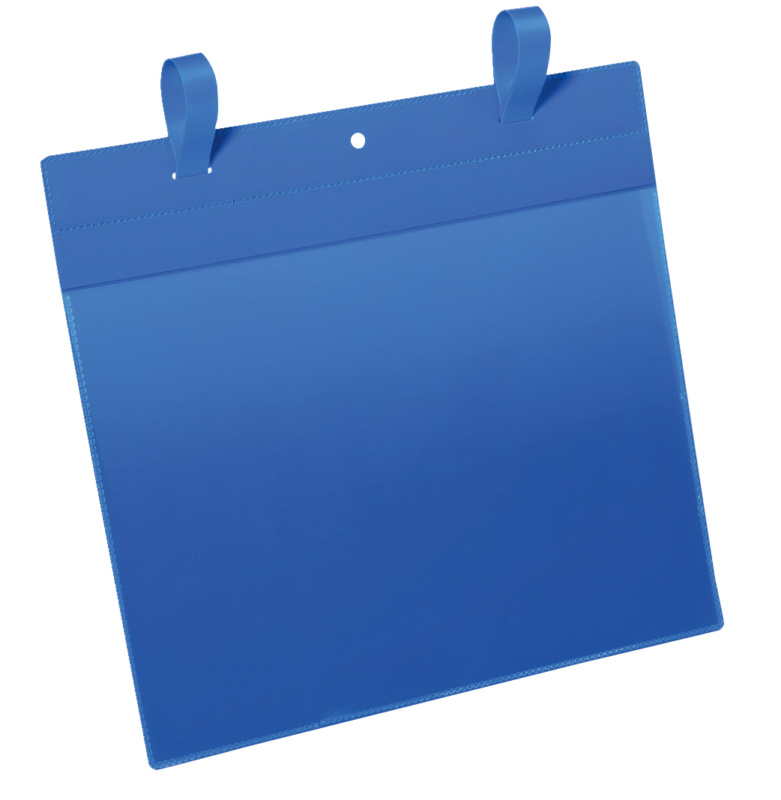

  • Crate pocket with fastening strap 50 pieces A4 landscape 297x210 mm blue
  •

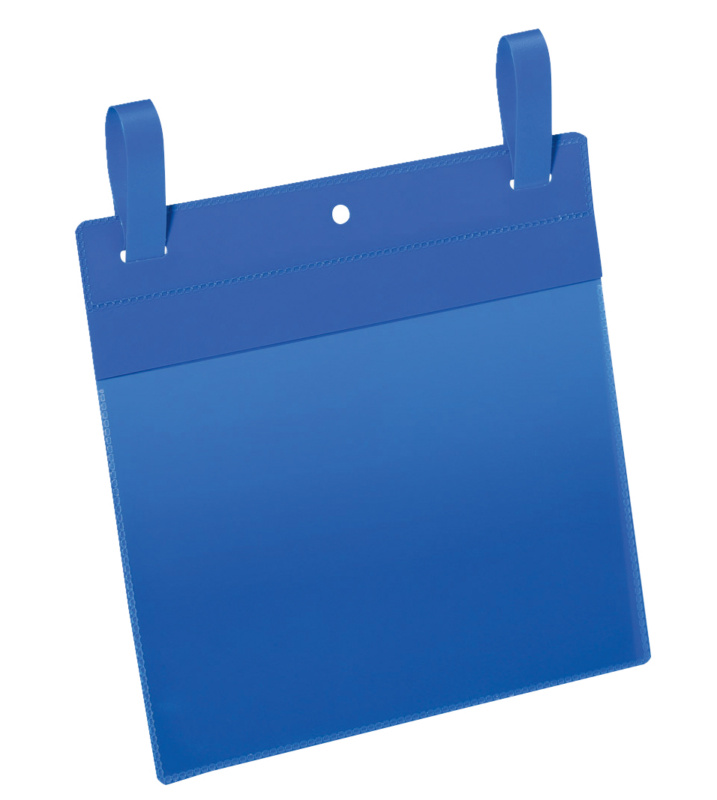

    Crate pocket with fastening strap 50 pieces A5 landscape 210x148 mm blue
