ATORN HPC reamer, SC TiAlN, T=4 0° 5.02mm 0-0.004mm x 75mm x 12mm HA (steel)

ATORN HPC reamer, SC TiAlN, T=4 0° 5.02mm 0-0.004mm x 75mm x 12mm HA (steel)

ATORN HPC reamer, SC TiAlN, T=4 0° 5.02mm 0-0.004mm x 75mm x 12mm HA (steel)
Item no: 1013522 214

Online price:

Available in 6-8 working days.

Application
for cutting fit tolerances in blind holes on modern CNC machines with steady tool and workpiece clamping up to 1300 N/mm².

Execution
Straight grooved with extremely variable pitch and internal cooling, type A

Advantage
  • innovative cutting geometry ensures excellent dimensional accuracy and process reliability for very high cutting parameters
  • high-quality solid carbide cutting material and coating ensure a very long service life
  • Internal cooling ensures optimum chip removal

Notes
Make sure that tools are accurately and tightly clamped (ideally use a hydro-mechanical clamping chuck or precision collet chuck). Note: Please refer to dimension table.

Brand: ATORN
Material to be processed: Steel | Cast metal
Cutting edge diameter: 5,02 mm
Tolerance of fit: 0 / +0,004 mm
Type: HPC UNI
Suitable for through hole: No
Form: A
Suitable for blind hole: Yes
Groove type: Straight
Number of cutting edges: 4 PCS
Surface: TiAlN
Cutting material: SC
Projecting length: 37 mm
Length: 75 mm
Shank diameter: 6 mm
Coolant supply: Internal
Min./max. diameter (Ø): 3.97-20.0 mm

ATORN-No.: 12160162

EAN no.: 4050293395013

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • ATORN HPC reamer, SC TiAlN, T=4 0° 4.02mm 0-0.004mm x 75mm x 12mm HA (steel)
  •
    Set Schlitz-Trennbleche BxT 918x612mm FH 50mm 7 Schlitzwände, 14 Trennbleche
    59,30 €
  • Set Schlitz-Trennbleche 459x612mm FH 100,125mm 3 Schlitzwände, 8 Trennbleche
    42,10 €
  • ATORN HPC reamer, SC TiAlN, T=4 0° 6.02mm 0-0.005mm x 75mm x 12mm HA (steel)
  •
    ATORN HPC reamer, hard, Dulo/Salo, solid carbide TIALN diameter 16.00 mm H7
  •
    ATORN HPC reamer, SC TiAlN, T=4 0° 4.03mm 0-0.004mm x 75mm x 12mm HA (steel)
  •
    ATORN bandsaw blade bi-metal UNI M42 3000 x 27 x 0.9 mm 5/8
    29,92 €
  • ATORN bandsaw blade bi-metal UNI M42 2890 x 27 x 0.9 mm 3/4
    29,74 €
  • ATORN bandsaw blade bi-metal UNI M42 5000 x 34 x 1.1 mm 2/3
    54,65 €

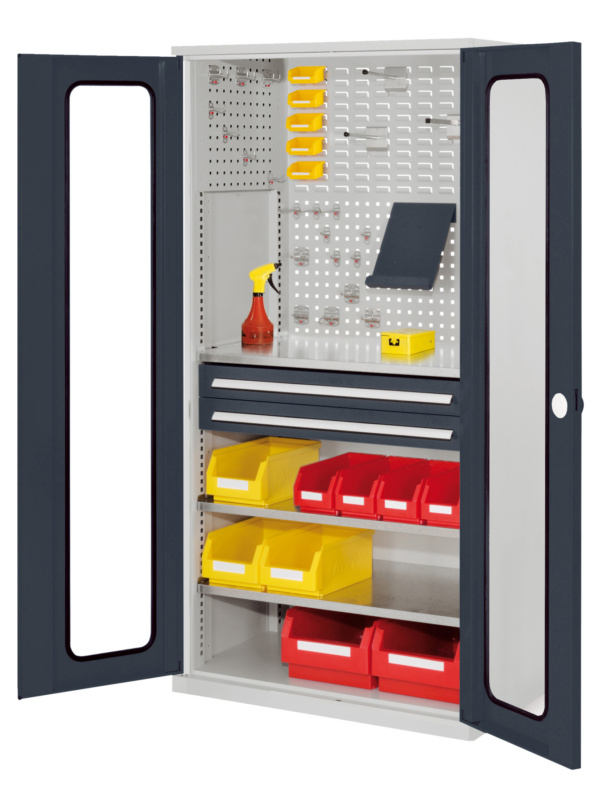

  • Cabinet with viewing window door MOD.1 7035/7016
