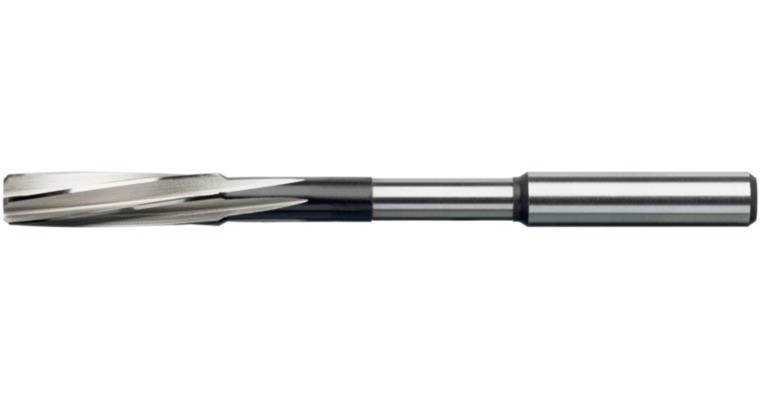

ATORN NC reamer HSSE T=6 D 7-8° 3.4mm H7 x 70mm x 18mm HA DIN 212

ATORN NC reamer HSSE T=6 D 7-8° 3.4mm H7 x 70mm x 18mm HA DIN 212

ATORN NC reamer HSSE T=6 D 7-8° 3.4mm H7 x 70mm x 18mm HA DIN 212
Item no: 1013490 224

Online price:

Available in 5-7 working days.

Application
for cutting H7 fit tolerances in through holes and blind holes on NC machines or conventional machines up to 1000 N/mm².

Execution
7-8° left-hand spiral, type D, with centring hole and offset shank

Advantage
good bore hole quality (dimensional tolerance, roundness, surface quality)


Brand: ATORN
Material to be processed: Universal use
Cutting material: HSSE
Tolerance of fit: H7
Groove type: Left-hand twist, 7-8°
Tool holding device: HA parallel shank
Surface: Uncoated
Cutting edge diameter: 3,4 mm
Length: 70 mm
Cutting edge length: 18 mm
Projecting length: 42 mm
Shank diameter: 4 mm
Number of cutting edges: 6 PCS
f steel 1000: 0,1 mm/r
DIN: 212

ATORN-No.: 10048425

EAN no.: 4050293009088

Product Datasheet Datasheet cutting values
