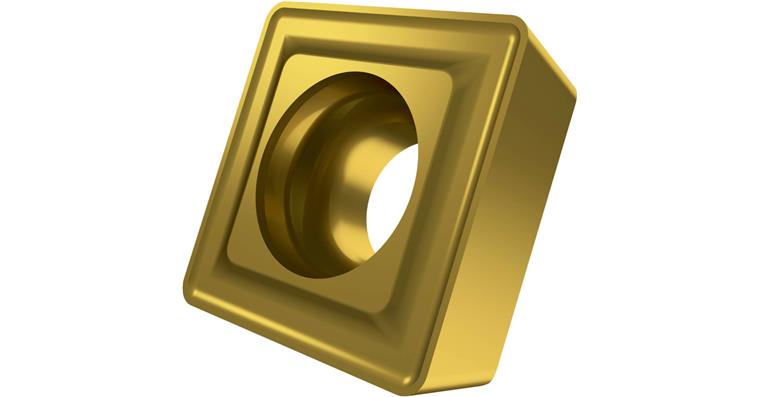

Indexable drilling insert SCET 09T308-UD:D8330 dia. range 28.0 to 34 mm

Indexable drilling insert SCET 09T308-UD:D8330 dia. range 28.0 to 34 mm

Indexable drilling insert SCET 09T308-UD:D8330 dia. range 28.0 to 34 mm
Item no: 1011181 114

Online price:

Available for immediate delivery

Application
High-performance indexable insert

Execution
UD geometry with universal design for outer indexable insert

Advantage
Suitable for various materials


Brand: DORMER PRAMET
ISO name: SCET 09T308-UD
Surface: Coated
Cutting material: SC
Suitable for min./max. cutting diameter: 28-34 mm
Number of cutting edges: 4
Inner circle diameter (IC): 9,525 mm
Cutting edge length (L): 9,53 mm
Mounting bore diameter (D1): 4,50 mm
Corner radius (RE): 0,8 mm
Thickness of indexable insert (S): 3,97 mm
Carbide type: D8330
Coating: PVD
Materials group: P (primary application) | K (primary application)
Carbide type area ISO: P | K
Carbide type ISO: K15 | K35 | P20 | P35
Min./max. Vc in steel: 140-165 m/min
Min./max. f in steel: 0.08-0.20 mm/U
Min./max. Vc in cast iron: 130-155 m/min
Min./max. f in cast iron: 0.08-0.20 mm/U
Number of pieces per packet: 10 PCS

Manufacturer part no.: 6754637

EAN no.: 3603602900036

Product Datasheet
