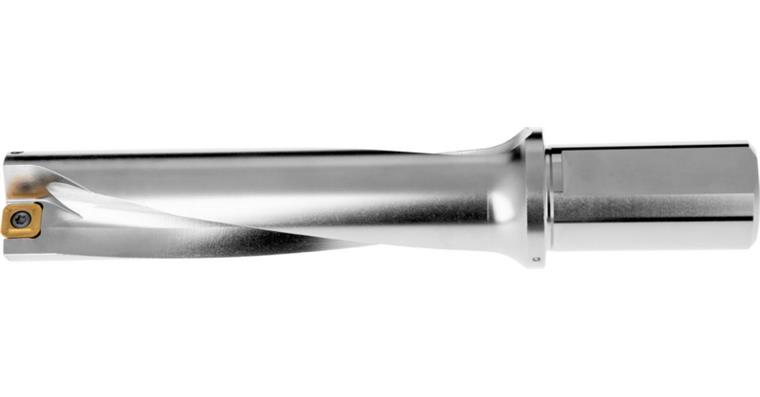

Index. ins. dr. bit 804D-49-196-S40 4xD dia.49.0 w/index. ins. XPET 1504..

Index. ins. dr. bit 804D-49-196-S40 4xD dia.49.0 w/index. ins. XPET 1504..

Index. ins. dr. bit 804D-49-196-S40 4xD dia.49.0 w/index. ins. XPET 1504..
Item no: 1011180 532

Online price:

Still in stock: 9

Application
High-performance indexable insert drilling tool for reliable drilling in numerous materials.

Execution
Drilling depth max. 4xD

Advantage
  • Suitable for drilling:
  • Blind holes and through-bores, cross holes, off-centre drill holes and stacked drill holes
  • Helical interpolation, plunging, drilling on concave and angled surfaces
  • Drilling with interrupted cuts
  • Suitable for chamfer drilling


Brand: DORMER PRAMET
Max. drilling depth (D): 4xD
Angle of the tip: 90 Degree
Coolant supply: Internal
Cutting edge diameter (DC): 49 mm
Shank diameter (DCON MS): 40 mm
Max. drilling depth (LU): 205,5 mm
Projecting length (LPR): 221 mm
Length (OAL): 291 mm
Collar diameter (DF): 55 mm
Shaft length (LS): 70 mm
Suitable for indexable inserts: SC.. 1505.. | XP.T 1504
Number of cutting edges: 2 PCS
Coupon code: DORMER1011180532

Manufacturer part no.: 6760980

EAN no.: 3603602963260

Product Datasheet
