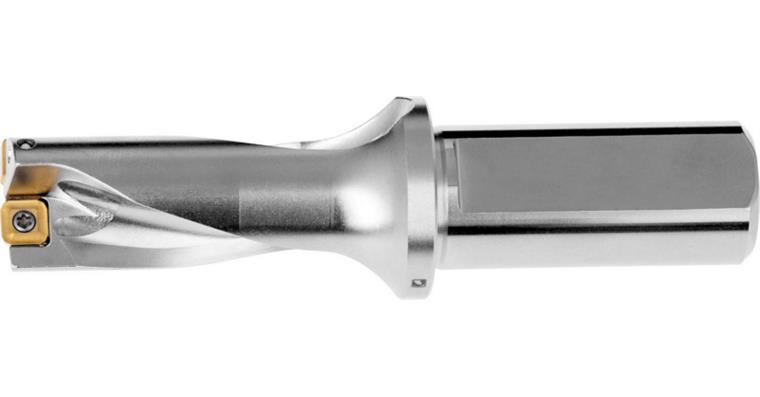

Index. ins. drill bit 802D-25-50-S32 2xD dia.25.0 w/index. ins. XPET 0703..

Index. ins. drill bit 802D-25-50-S32 2xD dia.25.0 w/index. ins. XPET 0703..

Index. ins. drill bit 802D-25-50-S32 2xD dia.25.0 w/index. ins. XPET 0703..
Item no: 1011180 110

Online price:

Still in stock: 3

Application
High-performance indexable insert drilling tool for reliable drilling in numerous materials.

Execution
Drilling depth max. 2xD

Advantage
  • Suitable for drilling:
  • Blind holes and through-bores, cross holes, off-centre drill holes and stacked drill holes
  • Helical interpolation, plunging, drilling on concave and angled surfaces
  • Drilling with interrupted cuts
  • Suitable for chamfer drilling


Brand: DORMER PRAMET
Max. drilling depth (D): 2xD
Angle of the tip: 90 Degree
Coolant supply: Internal
Cutting edge diameter (DC): 25 mm
Shank diameter (DCON MS): 32 mm
Max. drilling depth (LU): 57 mm
Projecting length (LPR): 85 mm
Length (OAL): 145 mm
Collar diameter (DF): 42 mm
Shaft length (LS): 60 mm
Suitable for indexable inserts: SC.. 0703.. | XP.T 0703
Number of cutting edges: 2 PCS
Coupon code: DORMER1011180110

Manufacturer part no.: 6820774

EAN no.: 3603603005112

Product Datasheet
