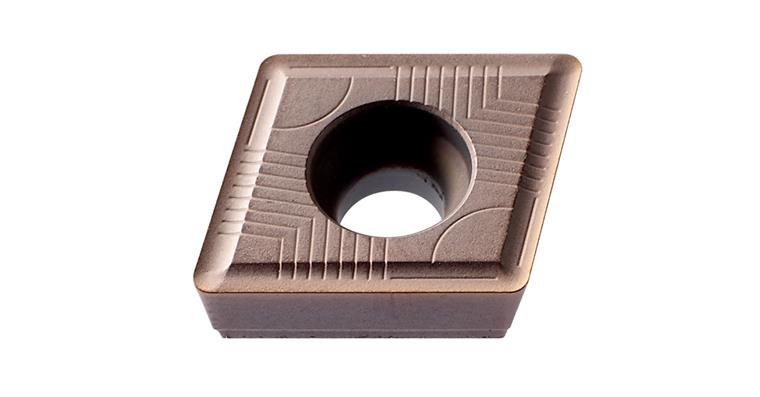

LIZZARD Wendeplatte SDX XPMT 063306-G HCU30D

LIZZARD Wendeplatte SDX XPMT 063306-G HCU30D

LIZZARD Wendeplatte SDX XPMT 063306-G HCU30D
Item no: 1011160 416

Online price:

Available in 5-7 working days.

Application
High level of process reliability for applications such as boring, spotfacing, external turning and internal boring.

Execution
  • 4 effective cutting edges per indexable insert
  • Same indexable insert can be used as centre insert and peripheral insert

Advantage
  • Wide range of applications in structural steel and stainless steels
  • Optimised chip space geometry and cutting edge positions for stable drilling


Brand: LIZZARD
ISO name: XPMT 063306
Surface: TiAlN
Cutting material: SC
Suitable for min./max. cutting diameter: 19-22 mm
Number of cutting edges: 4 PCS
Inner circle diameter (IC): 6,0 mm
Cutting edge length (L): 6,6 mm
Mounting bore diameter (D1): 3,4 mm
Corner radius (RE): 0,6 mm
Thickness of indexable insert (S): 3,5 mm
Carbide type: HCP20D
Coating: TiAlN
Materials group: P (primary application) | K (primary application)
Carbide type area ISO: P | K
Carbide type ISO: P10 | P25 | K10 | K30
Min./max. Vc in steel: 170-220 m/min
Min./max. f in steel: 0.06-0.15 mm/U
Min./max. Vc in cast iron: 200-250 m/min
Min./max. f in cast iron: 0.06-0.2 mm/U
Number of pieces per packet: 10 PCS

EAN no.: 4024496177493

Product Datasheet
