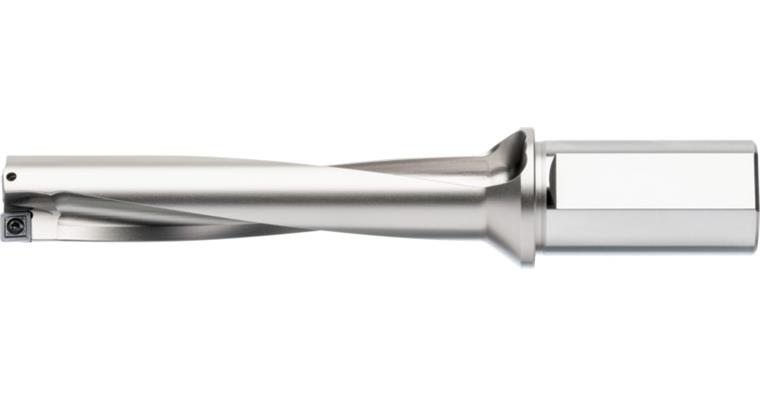

ATORN indexable insert drill 5xD 35.5x274x40 mm with IC

ATORN indexable insert drill 5xD 35.5x274x40 mm with IC

ATORN indexable insert drill 5xD 35.5x274x40 mm with IC
Item no: 1011157 355

Online price:

Available in 6-8 working days.

Application
Broad range of applications in steel, stainless steel, cast iron and special alloys

Execution
  • Available tool lengths of 3xD/4xD/5xD
  • Diameter range 14-44 mm

Advantage
  • Optimum service life through 4 usable cutting edges per reversible tip
  • Same indexable insert can be used as centre insert and peripheral insert
  • Optimal chip removal thanks to optimised coolant outlet
  • Best surfaces and bore hole quality

Delivery
The holder contains the clamping screws, supplied without spanner

Notes
warning: when the drill passes completely through the workpiece, a disc is created. if the workpiece is rotating, the disc will be flung away! appropriate safety precautions are required!

Brand: ATORN
Cutting edge diameter (D1): 35,5 mm
Shank diameter (D): 40 mm
Collar diameter (D2): 50 mm
Length (L): 274 mm
Cantilever length (L1): 206 mm
Max. drilling depth (L4 max.): 180 mm
Suitable for indexable inserts type: F
Coolant supply: Internal
Shaft length (LS): 68 mm
Cutting direction: Right-hand cutting
Adjustment range (+/-): +0,40
Tool holding device: HB parallel shank

ATORN-No.: 12850069

EAN no.: 4066107004859

Product Datasheet Datasheet cutting values
