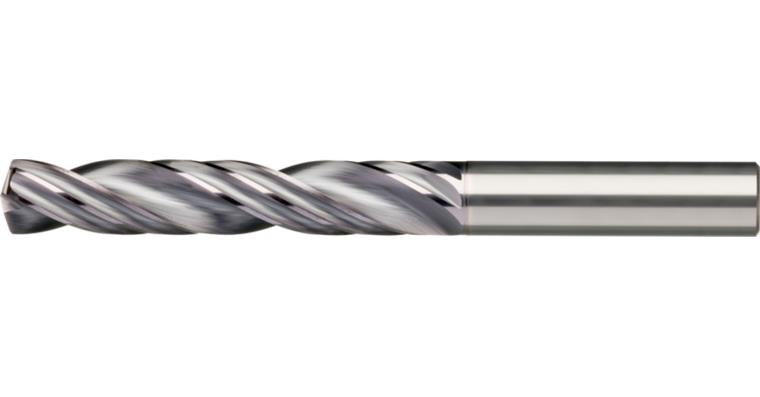

ATORN high-performance drill reamer, SC TiAlN, 5xD 7.98 mm x 8 mm x 91 mm

ATORN high-performance drill reamer, SC TiAlN, 5xD 7.98 mm x 8 mm x 91 mm

ATORN high-performance drill reamer, SC TiAlN, 5xD 7.98 mm x 8 mm x 91 mm
Item no: 1011090 106

Online price:

Available in 4-6 working days.

Application
For producing H7 drill holes in a single action for universal application up to 1300 N/mm².

Execution
high-performance drill reamer with 6 drill heels

Advantage
  • drilling and reaming in H7 quality in a single work step at a high cutting speed
  • innovative geometry for productively and reliably machining holes in H7 quality


Brand: ATORN
Material to be processed: Steel | Cast metal
Cutting material: SC
Surface: TiAlN
Max. drilling depth (D): 5xD
Angle of the tip: 140 Degree
Coolant supply: Internal
Tool holding device: HA parallel shank
Cutting edge diameter: 7,98 mm
Shank diameter: 8 mm
Chip flute length: 53 mm
Length: 91 mm
f steel 1000: 0,23 mm/r
DIN: 6537

ATORN-No.: 12040027

EAN no.: 4050293358544

Product Datasheet Datasheet cutting values
