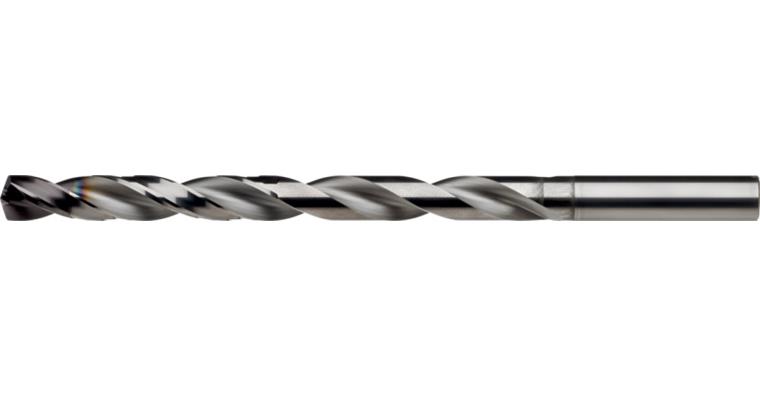

ATORN high-perf. drill, SC TiAlNplus HPC 12xD 15.5 mmx16 mm x260 mm, HA internal

ATORN high-perf. drill, SC TiAlNplus HPC 12xD 15.5 mmx16 mm x260 mm, HA internal

ATORN high-perf. drill, SC TiAlNplus HPC 12xD 15.5 mmx16 mm x260 mm, HA internal
Item no: 1011072 255

Online price:

Only while stocks last: 2
Replacement article

Application
For HPC boring up to a strength of 1300 N/mm².

Execution
  • solid carbide TiAlNplus high-performance drill
  • 4 drill heels
  • Four grinding faces
  • 30° spiral angle
  • Straight main cutting edge

Advantage
  • Very good all-round properties and precise cutting performance with high cutting rates
  • Extremely hard, low-friction, temperature-resistant and form-fitting TiAlN plus coating ensures extra service life
  • Cutting edge preparation minimises micro-fractures on the cutter


Brand: ATORN
Cutting edge diameter: 15,5 mm
Tolerance of cutting edge diameter: m7
Cutting material: SC
Surface: TiAlN plus
Max. drilling depth (D): 12xD
Type: HPC UNI
Coolant supply: Internal
Tool holding device: HA parallel shank
Angle of the tip: 140 Degree
Shank diameter: 16 mm
Chip flute length: 208 mm
Length: 260 mm
f steel 1000: 0,2 mm/r
DIN: 0 - not applicable

ATORN-No.: 10481188

EAN no.: 4050293335446

Product Datasheet Datasheet cutting values
