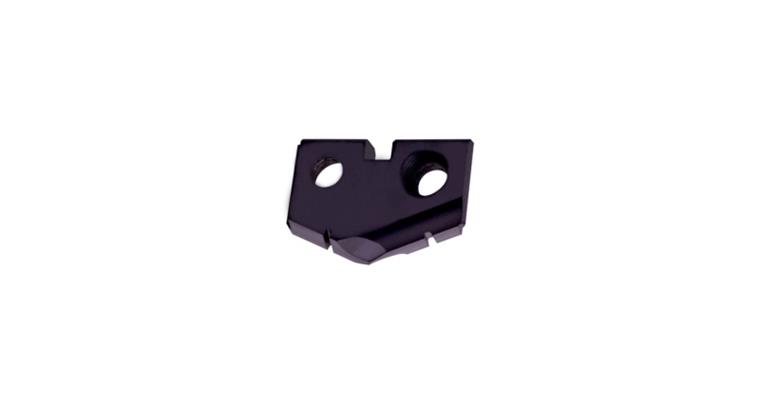

Multiplex indexable insert with surface grind HSS-E PM+TiAlN 28.0 mm

Multiplex indexable insert with surface grind HSS-E PM+TiAlN 28.0 mm

Multiplex indexable insert with surface grind HSS-E PM+TiAlN 28.0 mm
Item no: 1010672 605

Online price:

Still in stock: 1

Application
For materials up to 1200 N/mm² strength.

Execution
  • With polished faces
  • Right-cutting


Brand: HARTNER
Cutting material: HSSE-PM
Surface: TiAlN
Angle of the tip: 132 Degree
Coolant supply: Internal
Cutting edge diameter: 28 mm
Cutting direction: Right-hand cutting
Number of cutting edges: 2
Material to be processed: Universal use
Max. Vc in cast iron: 40 m/min
Max. Vc in hardened steel 50 HRC: 27 m/min
Max. Vc in non-ferrous metals: 65 m/min
Max. Vc in stainless steel: 23 m/min
Max. Vc in steel: 60 m/min
Min. Vc in cast iron: 33 m/min
Min. Vc in hardened steel 50 HRC: 15 m/min
Min. Vc in non-ferrous metals: 32 m/min
Min. Vc in stainless steel: 17 m/min
Min. Vc in steel: 13 m/min
Min./max. Vc in cast iron: 33-40 m/min
Min./max. Vc in hardened steel 50 HRC: 15-27 m/min
Min./max. Vc in non-ferrous metals: 32-65 m/min
Min./max. Vc in stainless steel: 17-23 m/min
Min./max. Vc in steel: 13-60 m/min
Suitable for material group H: 2
Suitable for material group K: 1
Suitable for material group M: 2
Suitable for material group N: 2
Suitable for material group P: 1
Suitable for material group S: 3
Thickness of cutting edge: 5,0 mm

Manufacturer part no.: 86609 28

EAN no.: 4031096182963

Product Datasheet
