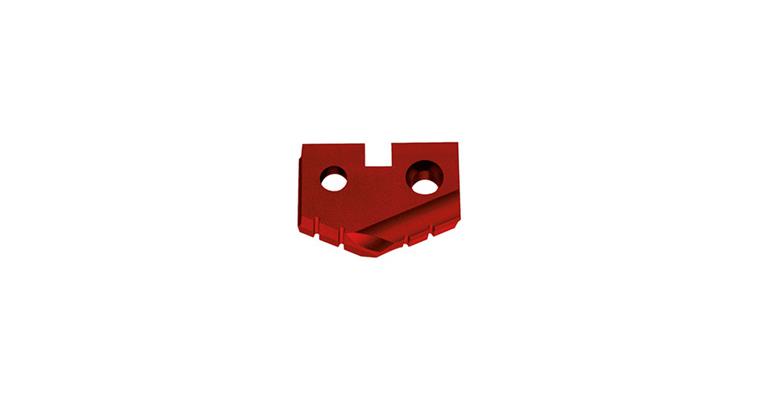

Multiplex indexable insert with chip breaker groove HSS-E-PM+Fire 24.00 mm

Multiplex indexable insert with chip breaker groove HSS-E-PM+Fire 24.00 mm

Multiplex indexable insert with chip breaker groove HSS-E-PM+Fire 24.00 mm
Item no: 1010655 675

Online price:

Available in 6-8 working days.

Application
Steel up to 1200 N/mm², cast iron, aluminium, brass, bronze.

Execution
  • With polished faces
  • Right-cutting
  • With chip divider groove for short chips
  • HSSE-PM, fire-coated for extended service life


Brand: HARTNER
Cutting material: HSSE-PM
Surface: TiAlN plus
Angle of the tip: 135 Degree
Coolant supply: Internal
Cutting edge diameter: 24 mm
Cutting direction: Right-hand cutting
Number of cutting edges: 2
Material to be processed: Universal use
Max. Vc in cast iron: 40 m/min
Max. Vc in hardened steel 50 HRC: 20 m/min
Max. Vc in non-ferrous metals: 65 m/min
Max. Vc in stainless steel: 20 m/min
Max. Vc in steel: 48 m/min
Min. Vc in cast iron: 33 m/min
Min. Vc in hardened steel 50 HRC: 15 m/min
Min. Vc in non-ferrous metals: 32 m/min
Min. Vc in stainless steel: 15 m/min
Min. Vc in steel: 13 m/min
Min./max. Vc in cast iron: 33-40 m/min
Min./max. Vc in hardened steel 50 HRC: 15-20 m/min
Min./max. Vc in non-ferrous metals: 32-65 m/min
Min./max. Vc in stainless steel: 15-20 m/min
Min./max. Vc in steel: 13-48 m/min
Suitable for material group H: 2
Suitable for material group K: 1
Suitable for material group M: 2
Suitable for material group N: 2
Suitable for material group P: 1
Suitable for material group S: 3
Thickness of cutting edge: 4,0 mm

Manufacturer part no.: 86608 24

EAN no.: 4031096150689

Product Datasheet
