ATORN twist drill TLP HSS, MK 2, 15.0 mm x 425 mm x 275 mm, 130°

ATORN twist drill TLP HSS, MK 2, 15.0 mm x 425 mm x 275 mm, 130°

ATORN twist drill TLP HSS, MK 2, 15.0 mm x 425 mm x 275 mm, 130°
Item no: 1010623 123

Online price:

Still in stock: 1

Application
Geometry with deep-hole profile for application up to a strength of 1000 N/mm².

Execution
Twist drill with deep-hole profile

Advantage
  • Deep-hole profile for optimised chip removal at greater drilling depths without venting
  • effective removal of chips thanks to large chipping spaces

Notes
chamfer nitrated < Ø16; steam treated > Ø16

Brand: ATORN
Material to be processed: Aluminium | Cast metal | Steel
Cutting material: HSS
Surface: Uncoated
Type: TLP
Angle of the tip: 130 Degree
DIN: 341
Tool holding device: Morse taper shank
Cutting edge diameter: 15 mm
Chip flute length: 275 mm
Length: 425 mm
Morse taper size: MK 2
f steel 1000: 0,19 mm/r

ATORN-No.: 10472673

EAN no.: 4050293035667

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

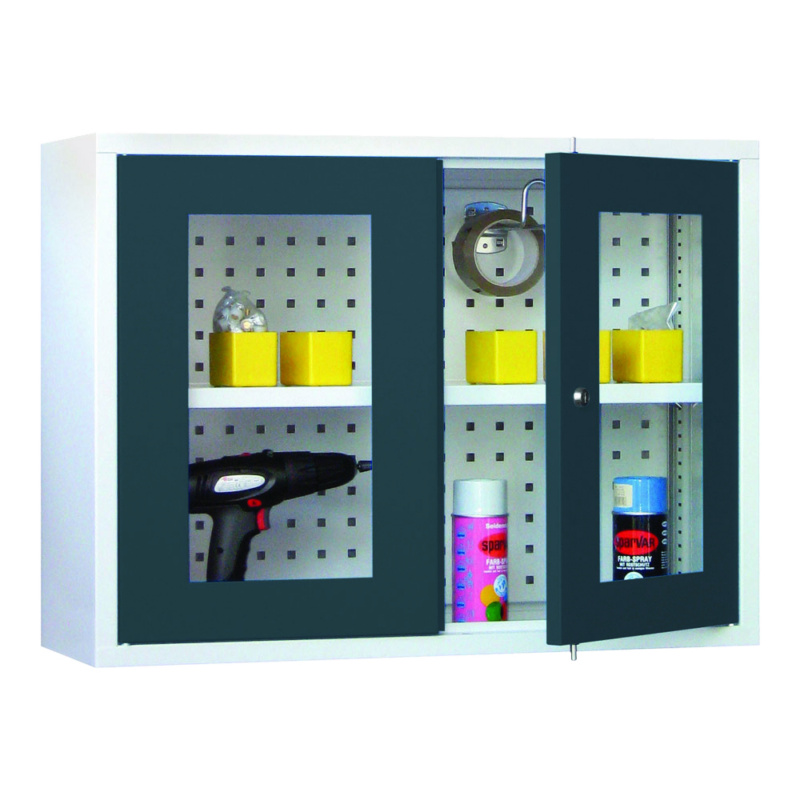

  • Hang. cab. back pan. prftd doors w/ view. window W800mm RAL7035/7016 anthr. grey
  •
    ATORN twist drill bit HSS type N DIN 1897 7.30 mm x 74 mm x 34 mm, 118°
  •
    ATORN twist drill U4 HSSE, DIN 338, 3.6 mm x 70 mm x 39 mm, 118°
  •
    Hang. cab. back pan. smth doors w/ view. wind. W800mm RAL7035/7016 anthr. grey
  •
    ATORN twist drill U4 HSSE, DIN 338, 5.7 mm x 93 mm x 57 mm, 118°
  •
    ATORN twist drill bit HSS type N DIN 1897 10.2 mm x 89 mm x 43 mm, 118°
  •
    ATORN twist drill U4 HSSE, DIN 338, 5.9 mm x 93 mm x 57 mm, 118°
  •

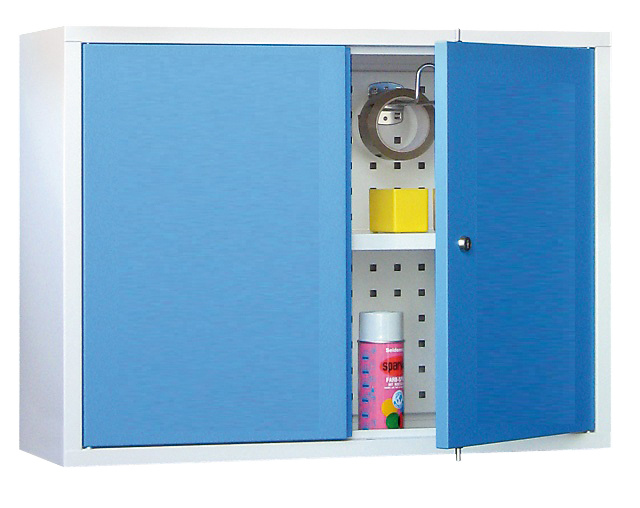

    Hang. cab. back pan. prftd sld sheet metal doors W800mm RAL7035/5012 light blue
  •
