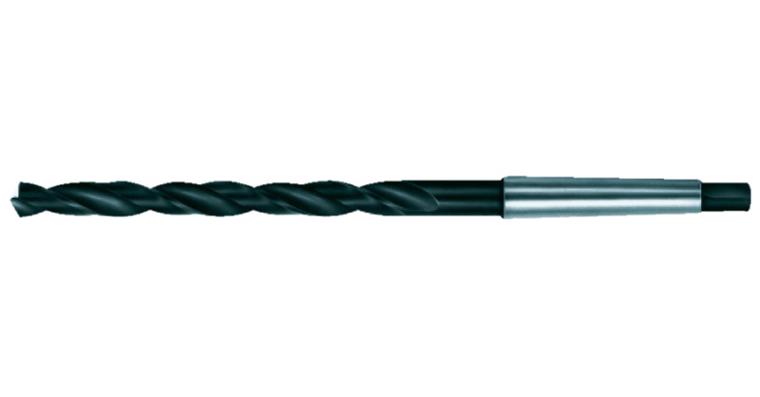

Long twist drill bit DIN 341 type N HSS ground MK4 34 mm

Long twist drill bit DIN 341 type N HSS ground MK4 34 mm

Long twist drill bit DIN 341 type N HSS ground MK4 34 mm
Item no: 1010610 182

Online price:

Available in 6-8 working days.

Application
For drilling through boring bushings and for drilling deep holes. For drilling steel and cast steel (alloyed and unalloyed), cast iron, malleable iron, spheroidal graphite iron, sinter iron, nickel silver and graphite up to approx. 900 N/mm² strength.

Execution
  • With Morse taper and flat tangs
  • Right-cutting
  • Tip angle 118°
  • Cone polished section
  • Steam treated
  • HSS, ground


Brand: HARTNER
Material to be processed: Steel
Cutting edge diameter: 34 mm
Length: 406 mm
Chip flute length: 257 mm
Angle of the tip: 118 Degree
Cutting material: HSS
Surface: Vaporised
Morse taper size: MK 4
Type: N
DIN: 341
f steel 700: 0,28 mm/r
Coolant supply: 0 - not applicable
Number of cutting edges: 1 PCS
Max. f in cast iron: 0,22 mm/r
Max. f in steel: 0,28 mm/r
Min. f in cast iron: 0,22 mm/r
Min. f in steel: 0,28 mm/r
Shank style: Morse taper

Manufacturer part no.: 82210 34

EAN no.: 4031096044681

Product Datasheet Datasheet cutting values
