Twist drill bit HSS-E-Co8 AG-coated DIN 1869-1 tip 118° 15xD dia. 2.4x95x140 mm

Twist drill bit HSS-E-Co8 AG-coated DIN 1869-1 tip 118° 15xD dia. 2.4x95x140 mm

Twist drill bit HSS-E-Co8 AG-coated DIN 1869-1 tip 118° 15xD dia. 2.4x95x140 mm
Video
Item no: 1010425 024

Online price:

Available in 6-8 working days.

Application
For drilling deep holes under difficult conditions. For steel up to 1200 N/mm² and cast iron. Drilling in increments, without chip removal up to 15xD!

Execution
  • Straight shank
  • Right-cutting
  • Special flute geometry
  • Helix angle 34°
  • DIN 1869-1
  • HSSE Co8, ground AG(AlCr) coating

Notes
Note the respective length/diameter ratio of the bore diameter and the flute length. Use only high-precision tool chucks!

Brand: NACHI
Material to be processed: Steel | Cast metal
Cutting edge diameter: 2,4 mm
Length: 140 mm
Chip flute length: 95 mm
Max. drilling depth (D): 15xD
Angle of the tip: 118 Degree
Cutting material: HSSE Co8
Surface: AlCrN
Tool holding device: Cylinder shank
Type: AGPLSD
DIN: 1869
Coolant supply: External
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
f steel 1000: 0,066 mm/r

Manufacturer part no.: L6540P 2.4X140

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN hand tap MS HSS D 352 0° M6 1 mm ISO2 D/S 3xD
    9,77 €
  • Twist drill bit HSS-E-Co8 AG-coated DIN 1869-1 tip 118° 15xD dia. 2.2x90x135 mm
    28,92 €
  • Twist drill bit HSS-E-Co8 AG-coated DIN 1869-1 tip 118° 15xD dia. 2.6x95x140 mm
    28,92 €
  • Twist drill bit HSS-E-Co8 AG coat. DIN 1869-1 tip 118° 15xD dia. 3.1x105x155 mm
    37,34 €
  • Twist drill bit HSS-E-Co8 AG coat. DIN 1869-1 tip 118° 15xD dia. 4.1x120x175 mm
    42,53 €
  • Twist drill bit HSS-E-Co8 AG coat. DIN 1869-1 tip 118° 15xD dia. 4.8x135x195 mm
    54,76 €
  • Twist drill bit HSS-E-Co8 AG coat. DIN 1869-1 tip 118° 15xD dia. 6.0x140x205 mm
    66,99 €
  • Twist drill bit HSS-E-Co8 AG coat. DIN 1869-1 tip 118° 15xD dia. 6.8x155x225 mm
    91,13 €
  • Twist drill bit HSS-E-Co8 AG coat. DIN 1869-1 tip 118° 15xD dia. 7.5x155x225 mm
    98,42 €

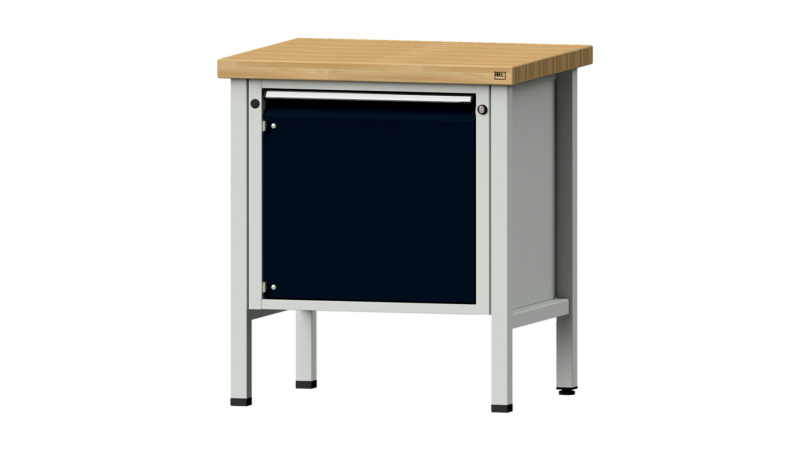

  • Cabinet workbench BSP 800x700x850 mm 1 door RAL7035/7016
