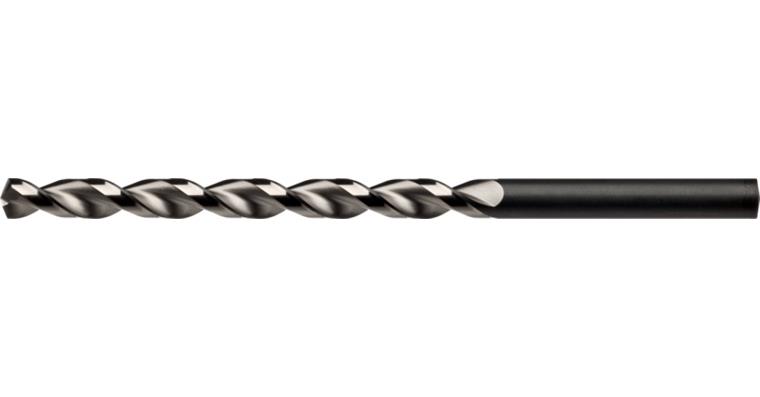

ATORN twist drill TLP HSSE, DIN 340, 1.1 mm x 60 mm x 37 mm, 130°

ATORN twist drill TLP HSSE, DIN 340, 1.1 mm x 60 mm x 37 mm, 130°

ATORN twist drill TLP HSSE, DIN 340, 1.1 mm x 60 mm x 37 mm, 130°
Item no: 1010411 111

Online price:

Available for immediate delivery

Application
Geometry with deep-hole profile for application up to a strength of 1300 N/mm².

Execution
Twist drill with deep-hole profile

Advantage
  • Deep-hole profile to optimise chip removal at greater drilling depths without venting
  • Effective chip evacuation thanks to large chip rooms

Delivery
Packaging unit: drill Ø 1.0-6.0 mm = 10 pieces (price per piece)

Notes
Chamfer-nitrated >2.36

Brand: ATORN
Material to be processed: Universal use
Cutting material: HSSE
Surface: Uncoated
Type: TLP
Self-centring: Yes
Tool holding device: HA parallel shank
Cutting edge diameter: 1,1 mm
Angle of the tip: 130 Degree
Chip flute length: 37 mm
Length: 60 mm
f steel 700: 0,03 mm/r
DIN: 340

ATORN-No.: 10480237

EAN no.: 4050293323153

Product Datasheet Datasheet cutting values
