Long twist drill bit DIN 340 type FS HSS ground 3.2 mm

Long twist drill bit DIN 340 type FS HSS ground 3.2 mm

Long twist drill bit DIN 340 type FS HSS ground 3.2 mm
Item no: 1010407 278

Online price:

Available in 11-13 working days.

Application
For normally machinable materials up to approx. 900 N/mm².

Execution
  • With straight shank
  • Right-cutting
  • Cone polished section
  • Tip angle 130°
  • With thinned chisel edge in accordance with DIN 1412 shape A
  • Wide chip grooves with highly rounded back edges
  • HSS, ground

Notes
For drilling deep holes (5–10 x D) without chip removal.

Brand: LIZZARD
Material to be processed: Steel
Cutting edge diameter: 3,2 mm
Length: 106 mm
Chip flute length: 69 mm
Angle of the tip: 130 Degree
Cutting material: HSS
Surface: Vaporised
Tool holding device: Cylinder shank
Type: FS
DIN: 340
Coolant supply: External
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
f aluminium: 0,03 mm/r
Min. f in steel: 0,03 mm/r
Max. f in steel: 0,06 mm/r
Min. f in cast iron: 0,07 mm/r
Max. f in cast iron: 0,07 mm/r

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • LIZZARD Spannzange ER 40 HP Ø 5,0 Gummi abgedichtet Rundlauf 0,005 mm
  •

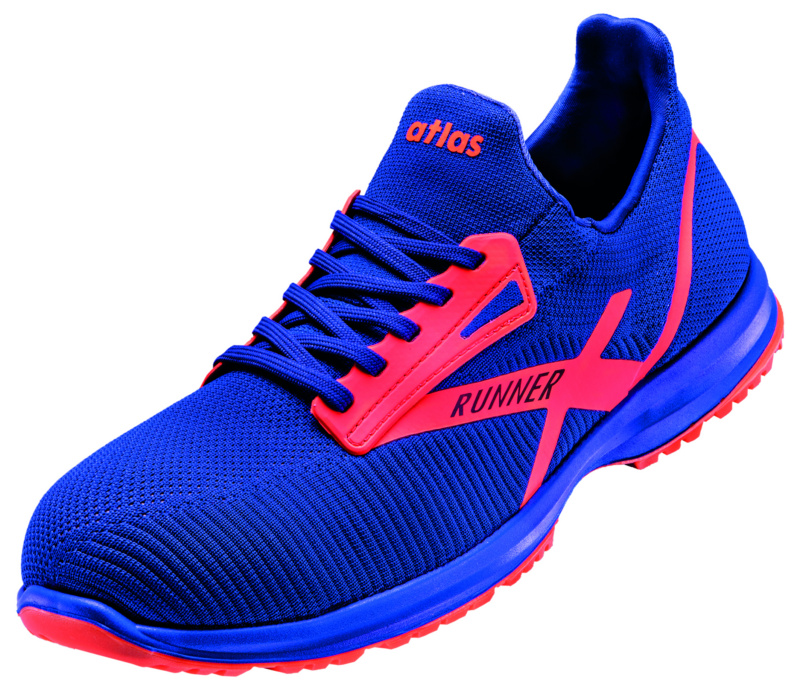

    Low-cut safety shoe Runner 65 S1P ESD W10 size 41
  •
    Low-cut safety shoe Runner 45 S1P ESD W10 size 40
  •
    Low-cut safety shoe Runner 25 S1P ESD W10 size 40
  •
    Welding protection filter glass dark grey 90x110 mm protection level 11
  •
    Nylon knitted glove Royaltec Tech 2107 PU = 12 pairs size 10
    32,40 €

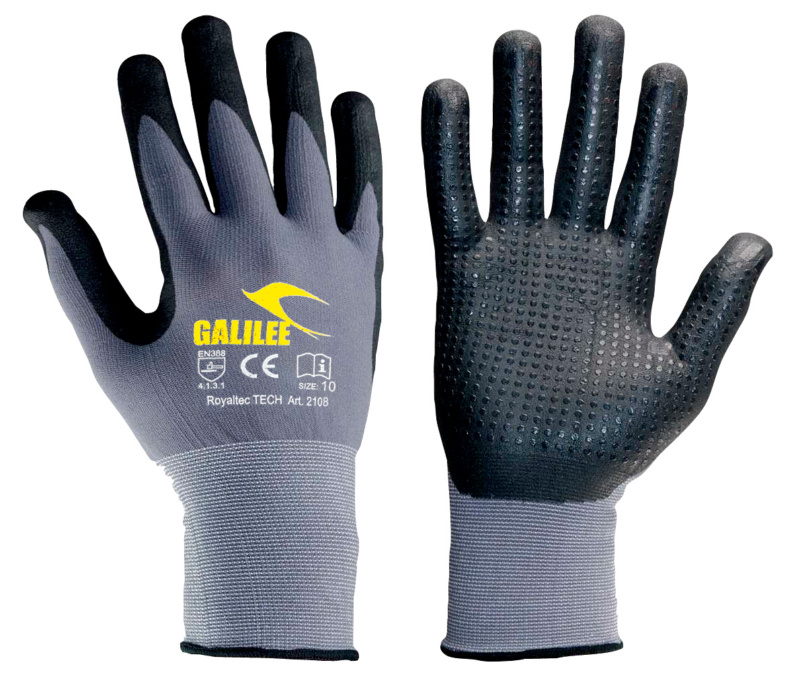

  • Nylon knitted glove Royaltec Tech 2108 PU = 12 pairs size 8
  •
