Spiralbohrer DIN 338 HSCO M42 TiAlZrN Typ HX500 Ø 8,5 mm

Spiralbohrer DIN 338 HSCO M42 TiAlZrN Typ HX500 Ø 8,5 mm

Spiralbohrer DIN 338 HSCO M42 TiAlZrN Typ HX500 Ø 8,5 mm
Item no: 1010280 085

Online price:

Available in 6-8 working days.

Application
For heavy-duty machining in construction and case-hardening steels and wear-resistant sheet metals

Execution
  • 8 % cobalt-alloyed HSCo high-speed steel
  • Conical chisel point 135°
  • Optimised split point


Brand: HARTNER
Material to be processed: Steel | Cast metal | Special alloy | Hardox
Cutting edge diameter: 8,5 mm
Length: 117 mm
Chip flute length: 37 mm
Max. drilling depth (D): 3xD
Angle of the tip: 135 Degree
Cutting material: HSCo8
Surface: TiN/ZrN
Tool holding device: HA parallel shank
Type: HX 500
Coolant supply: External
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
Shank diameter: 8,5 mm
Tolerance of cutting edge diameter: h8
f steel 1300: 0,09 mm/r

Manufacturer part no.: 9810000085000

EAN no.: 4031096314586

Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • Spiralbohrer DIN 338 HSCO M42 TiAlZrN Typ HX500 Ø 1,5 mm
  •
    Spiralbohrer DIN 338 HSCO M42 TiAlZrN Typ HX500 Ø 3,2 mm
  •
    Spiralbohrer DIN 338 HSCO M42 TiAlZrN Typ HX500 Ø 6,5 mm
  •
    Spiralbohrer DIN 338 HSCO M42 TiAlZrN Typ HX500 Ø 7,5 mm
  •
    ATORN HSS hand reamer, H7, B, 6°, 30.0mm x 247mm, T=10, DIN 206
  •
    ATORN mini cutting insert AIR 4.0mm L15 0.8 ISO HC5640
  •
    ATORN mini cutting insert AIL 3.0mm L15 0.5 ISO HW5615
  •
    Carbide wide lathe chisel DIN 4976/ISO 4 setting angle 0° P20 25 Q
  •
    Carbide wide lathe chisel DIN 4976/ISO 4 setting angle 0° P30 16 Q
  •
    Carbide wide lathe chisel DIN 4976/ISO 4 setting angle 0° K10 12 Q
  •
    Milling cutter holder short with CCB DIN 69871 AD/B SK40 6 x 50 mm
  •

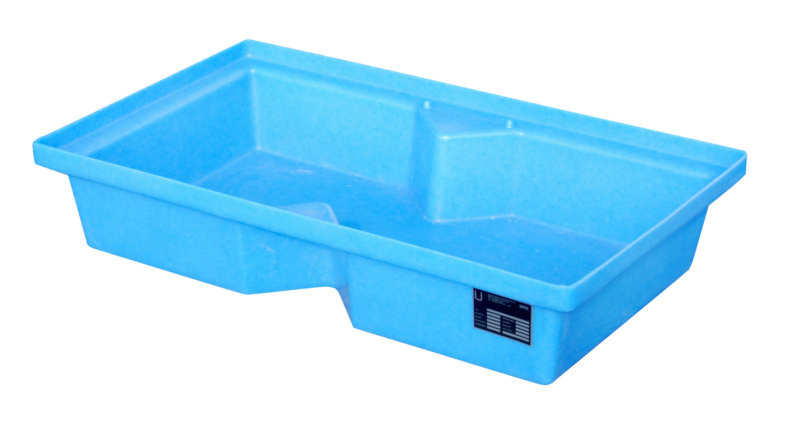

    PE-Auffangwanne 1000 x 600 x 200mm Auffangvolumen 60 l
