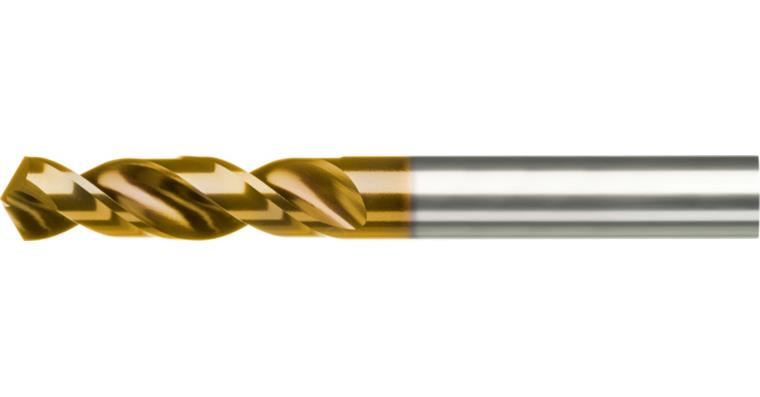

ATORN twist drill x HSSE-PM TiN, DIN 1897, 13.5 mm x 107 mm x 54 mm, 118°

ATORN twist drill x HSSE-PM TiN, DIN 1897, 13.5 mm x 107 mm x 54 mm, 118°

ATORN twist drill x HSSE-PM TiN, DIN 1897, 13.5 mm x 107 mm x 54 mm, 118°
Item no: 1010261 135

Online price:

Available in 6-8 working days.

Application
Universal use in all material groups up to a strength of 1300 N/mm2.

Execution
Twist drill with special point thinning

Advantage
  • high wear resistance and increased heat resistance
  • high cutting edge stability owing to special point thinning and cutting angle adjustment
  • ideal for machining higher-alloyed and higher-strength steels and materials

Delivery
Packaging unit: drill Ø 1.0-6.0 mm = 10 pieces (price per piece)


Brand: ATORN
Material to be processed: Universal use
Cutting material: HSSE-PM
Surface: TiN
Type: X
Self-centring: Yes
Tool holding device: HA parallel shank
Cutting edge diameter: 13,5 mm
Angle of the tip: 118 Degree
Chip flute length: 54 mm
Length: 107 mm
f steel 1000: 0,18 mm/r
DIN: 1897

ATORN-No.: 10478791

EAN no.: 4050293057478

Product Datasheet Datasheet cutting values
