ATORN twist drill U4 HSSE TiNAlOX, DIN 1897, 4.6 mm x 58 mm x 24 mm, 118°

ATORN twist drill U4 HSSE TiNAlOX, DIN 1897, 4.6 mm x 58 mm x 24 mm, 118°

ATORN twist drill U4 HSSE TiNAlOX, DIN 1897, 4.6 mm x 58 mm x 24 mm, 118°
Item no: 1010259 137

Online price:

Available for immediate delivery

Application
Universal use in all material groups up to a strength of 1300 N/mm².

Execution
Twist drill with 4-surface cut

Advantage
  • innovative cutting geometry: 4-faced polished section for drilling without centring
  • universal use: tool costs minimised and greater flexibility for the user
  • extremely hard, low-friction, temperature-resistant and form-fitting TiNAlOX coating ensures greater service life

Delivery
Packaging unit: drill Ø 1.0-6.0 mm = 10 pieces (price per piece)


Brand: ATORN
Material to be processed: Universal use
Cutting material: HSSE
Surface: TiNALOX
Type: U4
Self-centring: Yes
Tool holding device: HA parallel shank
Cutting edge diameter: 4,6 mm
Angle of the tip: 118 Degree
Chip flute length: 24 mm
Length: 58 mm
f steel 1000: 0,08 mm/r
DIN: 1897

ATORN-No.: 10476127

EAN no.: 4050293054460

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill U4 HSSE TiNAlOX, DIN 338, 7.0 mm x 109 mm x 69 mm, 118°
    15,27 €
  • ATORN twist drill U4 HSSE TiNAlOX, DIN 338, 9.4 mm x 125 mm x 81 mm, 118°
    26,56 €
  • ATORN twist drill U4 HSSE TiNAlOX, DIN 338, 9.8 mm x 133 mm x 87 mm, 118°
    24,57 €
  • ATORN twist drill U4 HSSE TiNAlOX, DIN 338, 9.9 mm x 133 mm x 87 mm, 118°
    28,97 €
  • Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 4.7 mm
    24,54 €
  • Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 28.5 mm
    383,94 €
  • ATORN twist drill U4 HSSE TiNAlOX, DIN 1897, 2.7 mm x 46 mm x 16 mm, 118°
    6,39 €
  • ATORN twist drill U4 HSSE TiNAlOX, DIN 1897, 3.8 mm x 55 mm x 22 mm, 118°
    7,55 €
  • ATORN twist drill U4 HSSE TiNAlOX, DIN 1897, 5.1 mm x 62 mm x 26 mm, 118°
    8,63 €
  • ATORN twist drill U4 HSSE TiNAlOX, DIN 1897, 8.5 mm x 79 mm x 37 mm, 118°
    16,85 €
  • Extra-long twist drill bit DIN 1870 type FN HSS ground 10 x 360 mm
  •

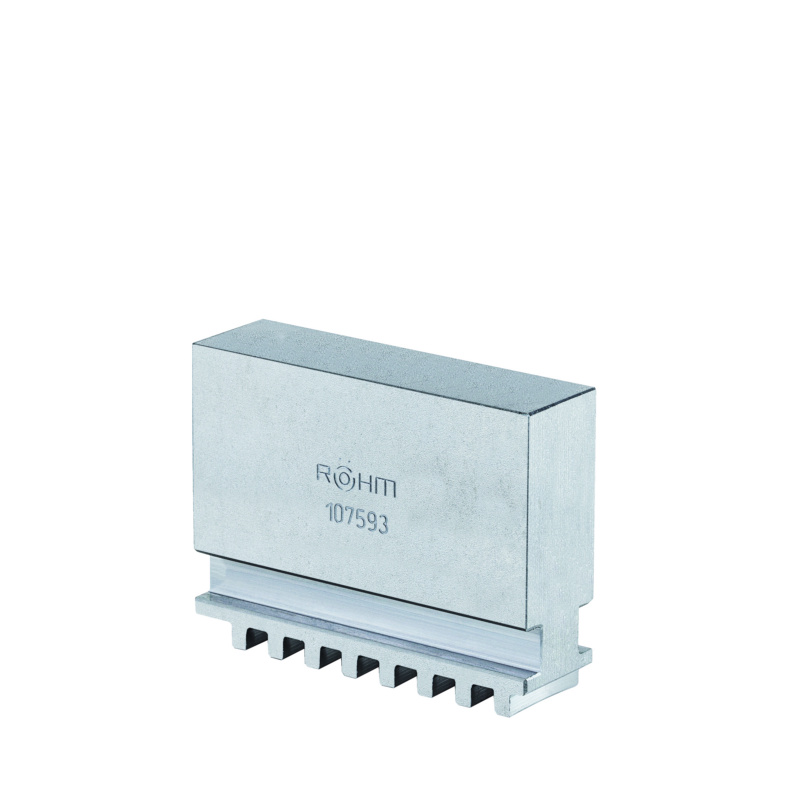

    Block jaw set 3 pieces soft unstepped for 3-jaw lathe chucks diameter 80 mm
