ATORN twist drill NV HSSE-TiN, DIN 1897, 16.5 mm x 119 mm x 60 mm, 130°

ATORN twist drill NV HSSE-TiN, DIN 1897, 16.5 mm x 119 mm x 60 mm, 130°

ATORN twist drill NV HSSE-TiN, DIN 1897, 16.5 mm x 119 mm x 60 mm, 130°
Item no: 1010255 465

Online price:

Available in 6-8 working days.

Application
Geometry with reinforced core and increased thermal resistance for application from strengths upwards of 700 N/mm².

Execution
Twist drill with reinforced geometry

Advantage
  • excellent cutting durability owing to reinforced core geometry
  • TiN coating for increased service life requirements

Delivery
Packaging unit: drill Ø 1.0-6.0 mm = 10 pieces (price per piece)


Brand: ATORN
Material to be processed: Steel | Stainless steel | Cast metal
Cutting material: HSSE
Surface: TiN
Type: NV
Self-centring: Yes
Tool holding device: HA parallel shank
Cutting edge diameter: 16,5 mm
Angle of the tip: 130 Degree
Chip flute length: 60 mm
Length: 119 mm
f steel 1300: 0,18 mm/r
DIN: 1897

ATORN-No.: 10480223

EAN no.: 4050293322354

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN HPC reamer, SC TiALN T=6 0° 11.71-12.20mm x 120mm x 20mm HA (hard)
  •
    ATORN twist drill NV HSSE-TiN, DIN 1897, 12.5 mm x 102 mm x 51 mm, 130°
  •
    ATORN twist drill NV HSSE-TiN, DIN 1897, 13.0 mm x 102 mm x 51 mm, 130°
  •
    ATORN twist drill NV HSSE-TiN, DIN 1897, 14.0 mm x 107 mm x 54 mm, 130°
  •
    ATORN twist drill NV HSSE-TiN, DIN 1897, 17.0 mm x 119 mm x 60 mm, 130°
  •
    ATORN twist drill NV HSSE-TiN, DIN 1897, 18.5 mm x 127 mm x 64 mm, 130°
  •
    ATORN twist drill NV HSSE-TiN, DIN 1897, 19.5 mm x 131 mm x 66 mm, 130°
  •
    ATORN twist drill N HSS TiALN DIN 1897 10.50 mm x 89 mm x 43 mm 118 degrees
  •

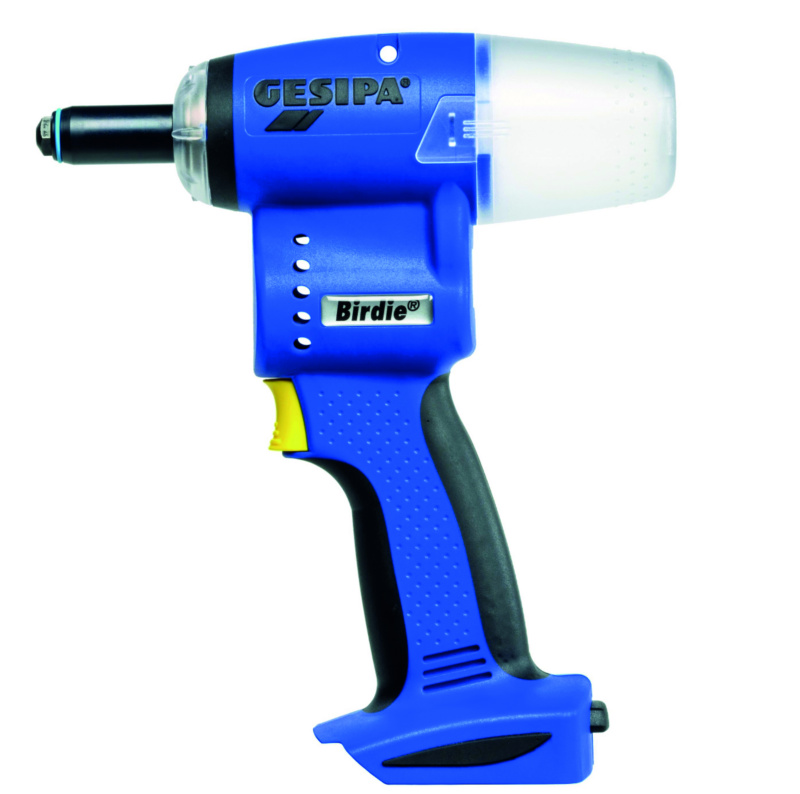

    Blind riveter Birdie SOLO without rechargeable battery or charger in box
  •

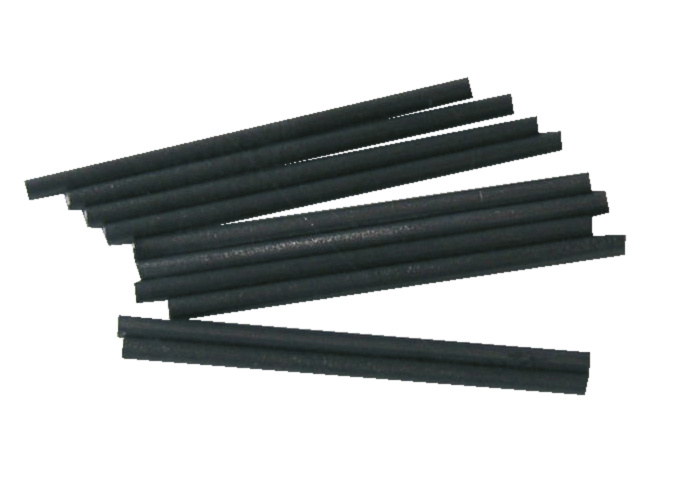

    Spare scriber points 1.2x25 mm pack =10 pcs electric engraver cat. 78460-78461
  •
