Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 7.5 mm

Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 7.5 mm

Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 7.5 mm
Item no: 1010217 065

Online price:

Available in 6-8 working days.

Application
For reliable and cost-effective drilling on CNC machines, universal application up to 1200 N/mm².

Execution
  • Straight shank
  • Right-cutting
  • Helix angle 31–32°
  • Thinned chisel edge

Notes
Use only high-precision tool holders.

Brand: NACHI
Min. f in special alloys: 0,130 mm/r
Material to be processed: Universal use
Cutting edge diameter: 7,5 mm
Length: 113 mm
Chip flute length: 69 mm
Max. drilling depth (D): 5xD
Angle of the tip: 135 Degree
Cutting material: HSS-PM
Surface: TiCN
Tool holding device: Cylinder shank
Type: SG-ESR
DIN: 338
Coolant supply: External
Number of cutting edges: 2 PCS
Shank diameter: 8 mm
Min. f in non-ferrous metals: 0,290 mm/r
Max. f in non-ferrous metals: 0,290 mm/r
f steel 1000: 0,19 mm/r
Min. f in steel: 0,188 mm/r
Max. f in steel: 0,230 mm/r
Min. f in stainless steel: 0,130 mm/r
Max. f in stainless steel: 0,160 mm/r
Min. f in cast iron: 0,290 mm/r
Max. f in cast iron: 0,290 mm/r
Max. f in special alloys: 0,130 mm/r

Manufacturer part no.: L7574 7,5

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 2.1 mm
    14,82 €
  • Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 4.3 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 4.9 mm
    24,54 €
  • Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 5.0 mm
    24,54 €
  • Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 7.9 mm
    39,12 €
  • Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 9.4 mm
  •
    Shrink-fit chuck DIN 69893 shape E HSK40 long diameter 6 x 80 mm
  •
    Shrink-fit chuck DIN 69893 shape E HSK40 long diameter 8 x 80 mm
    168,08 €
  • ATORN tube brush 20 mm, crimped stainless steel wire, M6, length 115 mm
  •
    ATORN tube brush 14 mm, crimped brass wire, M6, length 115 mm
    6,41 €
  • WIHA hex socket wrench 9 mm VDE SoftFinish
  •

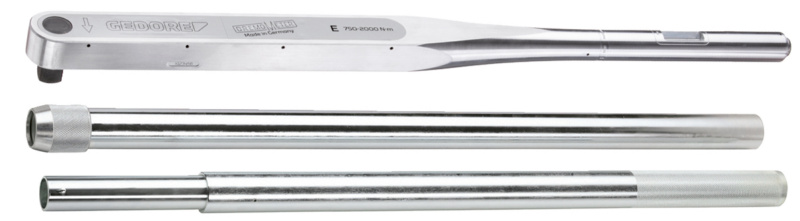

    1 inch torque wrench DREMOMETER E adjustment range 750-2,000 Nm
