Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 1.74 mm

Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 1.74 mm

Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 1.74 mm
Item no: 1010216 134

Online price:

Available in 6-8 working days.

Application
For process-reliable and cost-effective drilling on CNC machines. For universal use.

Execution
  • Straight shank
  • Right-cutting
  • Helix angle 26–33°
  • dia. < 1.4 mm tip angle 118°, dia. > 1.4 mm tip angle 135°
  • dia. < 1.4 mm with thinned chisel edge
  • High-quality HSS-PM, ground, for steel up to 1,200 N/mm²
  • SG coating (TiCN multi-layer coating)

Notes
Note the respective length/diameter ratio of the bore diameter and the flute length. Use only high-precision tool chucks!

Brand: NACHI
Min. f in special alloys: 0,016 mm/r
Material to be processed: Universal use
Cutting edge diameter: 1,74 mm
Length: 43 mm
Chip flute length: 11 mm
Max. drilling depth (D): 3xD
Angle of the tip: 135 Degree
Cutting material: HSSE-PM
Surface: TiCN
Tool holding device: Cylinder shank
Type: SG-ESS
DIN: 1897
Coolant supply: External
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
Shank diameter: 3 mm
Min. f in non-ferrous metals: 0,030 mm/r
Max. f in non-ferrous metals: 0,030 mm/r
f steel 1000: 0,024 mm/r
Min. f in steel: 0,022 mm/r
Max. f in steel: 0,026 mm/r
Min. f in stainless steel: 0,016 mm/r
Max. f in stainless steel: 0,019 mm/r
Min. f in cast iron: 0,033 mm/r
Max. f in cast iron: 0,033 mm/r
Max. f in special alloys: 0,016 mm/r

Manufacturer part no.: L7572 1,74

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • Twist drill bit HSS-PM SG-coated 118° tip angle 3xD dia. 0.78 mm
    28,84 €
  • Twist drill bit HSS-PM SG-coated 118° tip angle 3xD dia. 0.97 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 1.67 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 3.13 mm
    25,52 €
  • Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 3.62 mm
    28,03 €
  • Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 3.93 mm
    28,03 €
  • ATORN twist drill NV HSSE, DIN 1897, 1.8 mm x 36 mm x 11 mm, 130°
  •
    3-jaw tapered rod lathe chuck Duro cyl. adapter DIN 6350 dia. 250 mm
  •
    1/2 inch bi-hexagon socket DIN 3124/ISO 2725 HPQ steel AF 21 mm
  •
    T-piece TST14MSIG 3 female thread G 1/4 pressure 16 bar brass plain
    8,62 €
  • Divider assortment f. drawer hght 180-270mm 20 comp. f. workbench cat. no. 82030
  •

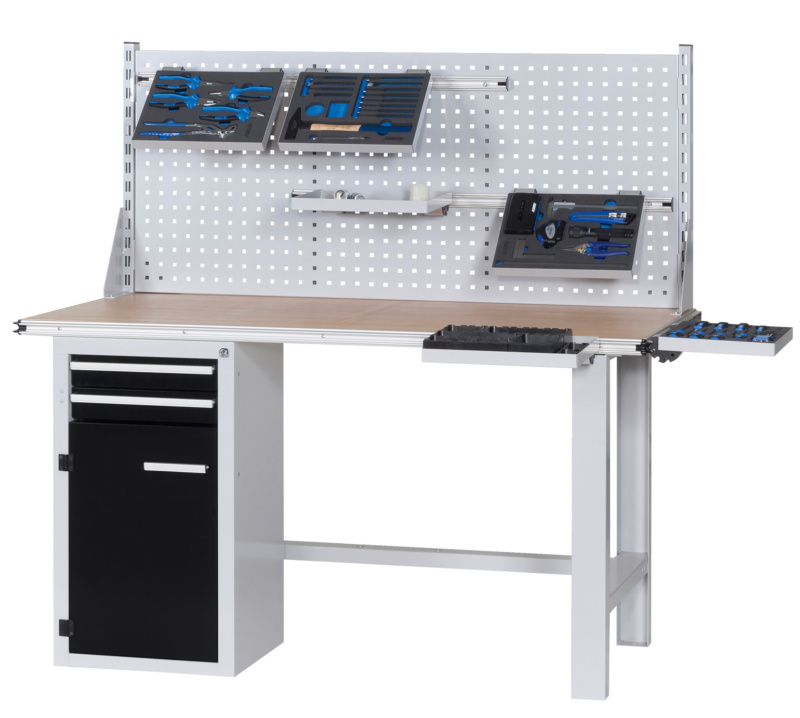

    Clip-O-Flex workbench 840x1500x750 w/ attach., 820mm cab. w/ fixed supp. angles
