Short VA twist drill bit DIN 338 type IS HSS-E, ground 10 mm

Short VA twist drill bit DIN 338 type IS HSS-E, ground 10 mm

Short VA twist drill bit DIN 338 type IS HSS-E, ground 10 mm
Item no: 1010214 693

Online price:

Still in stock: 7

Application
For materials that are difficult to machine. For drilling rust-, acid- and heat-resistant austenitic steels (V2A and V4A).

Execution
  • VA drill bit
  • Straight shank
  • Right-cutting
  • Cone polished section
  • High concentricity
  • Precise point geometry
  • Drilling without centring
  • HSSE, ground


Brand: HARTNER
Material to be processed: Stainless steel
Cutting edge diameter: 10 mm
Length: 133 mm
Chip flute length: 87 mm
Max. drilling depth (D): 5xD
Angle of the tip: 130 Degree
Cutting material: HSSE
Surface: Uncoated
Tool holding device: Cylinder shank
Type: IS
DIN: 338
Coolant supply: External
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
f aluminium: 0,17 mm/r
Min. f in non-ferrous metals: 0,17 mm/r
Max. f in non-ferrous metals: 0,22 mm/r
Min. f in stainless steel: 0,10 mm/r
Max. f in stainless steel: 0,10 mm/r

Manufacturer part no.: 81013 10

EAN no.: 4031096074220

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • Long twist drill bit DIN 341 type N HSS ground MK1 14 mm
  •
    Long twist drill bit DIN 341 type N HSS ground MK2 18 mm
    112,16 €
  • Long twist drill bit DIN 341 type N HSS ground MK3 24 mm
  •
    Long twist drill bit DIN 341 type N HSS ground MK4 34 mm
  •
    Long twist drill bit DIN 341 type N HSS ground MK4 35 mm
  •
    ATORN insert holder AME-R 25-ADE03-K-T25-C with internal cooling
  •
    ATORN carbide bur, 6 mm, WRC 1020.06 cut 2 TC
  •
    ATORN carbide bur, 6 mm, SPG 1525.06 cut 6 TC
  •
    1/4 inch screwdriver bit CVD-TiN slotted 1.6x10 mm
  •
    3/8 inch XZN socket size M 5 length 40 mm
    10,80 €

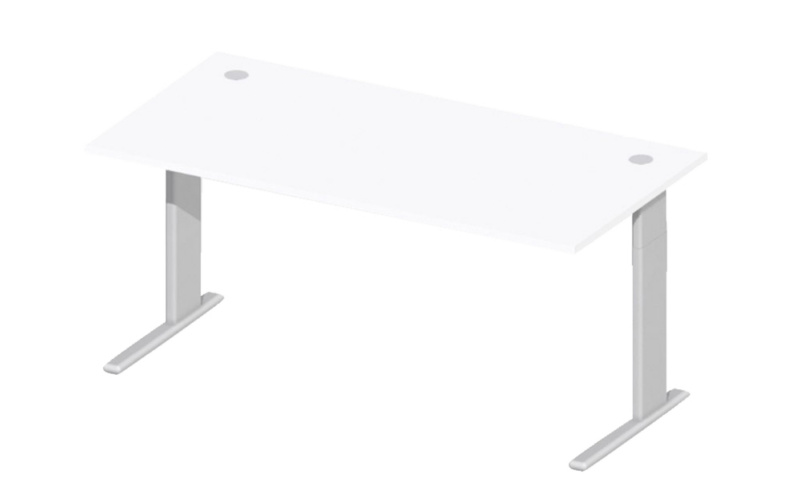

  • DESK COMFORT H640-820xW1600xD800 mm DECOR white
  •
