Short twist drill bit DIN 338 type H HSS, ground 4.9 mm

Short twist drill bit DIN 338 type H HSS, ground 4.9 mm

Short twist drill bit DIN 338 type H HSS, ground 4.9 mm
Item no: 1010210 145

Online price:

Available in 6-8 working days.

Application
Special drill bit with wide, spacious chip flutes for hard, brittle, short-chipping materials.

Execution
  • Brass drill bits
  • Straight shank
  • Right-cutting
  • Cone polished section
  • Side chip angle 12°–16°
  • HSS, ground


Brand: HARTNER
Material to be processed: Brass
Cutting edge diameter: 4,9 mm
Length: 86 mm
Chip flute length: 52 mm
Max. drilling depth (D): 5xD
Angle of the tip: 118 Degree
Cutting material: HSS
Surface: Uncoated
Tool holding device: Cylinder shank
Type: H
DIN: 338
Coolant supply: External
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
f aluminium: 0,10 mm/r
Min. f in non-ferrous metals: 0,10 mm/r
Max. f in non-ferrous metals: 0,15 mm/r

Manufacturer part no.: 81020 4,9

EAN no.: 4031096051702

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN test pin RSB TC1 11.96 mm x 70 mm
  •
    Short twist drill bit DIN 338 type H HSS, ground 1.6 mm
  •
    Short twist drill bit DIN 338 type H HSS, ground 4.6 mm
  •
    Short twist drill bit DIN 338 type H HSS, ground 6.4 mm
  •
    Short twist drill bit DIN 338 type H HSS, ground 6.9 mm
  •
    Long twist drill bit DIN 340 type FW HSS ground 3.2 mm
  •
    Long twist drill bit DIN 340 type FW HSS ground 4.5 mm
  •
    Through hole screw tap Hyper Z Series DIN 376 shape B 2xD HSS-E M 18
  •
    Through hole screw tap SGPO (PM) DIN371 shape B 3xD HSS-PM-SG M 3
  •
    1/4 inch screwdriver bit CVD-TiN slotted 1.2x8 mm
  •

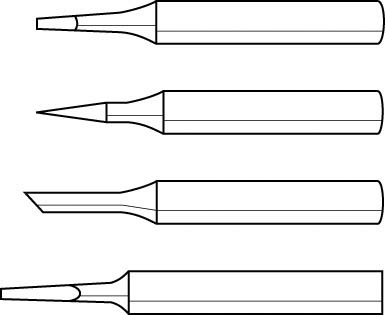

    Replacement soldering tip for soldering iron 70036102 25 W BD, pencil-shaped
  •
