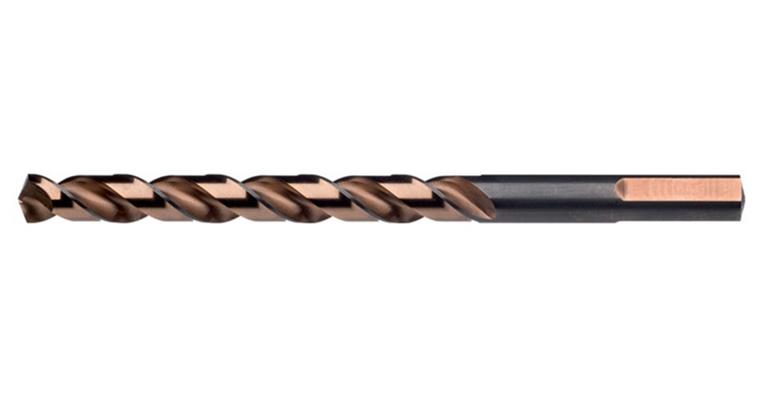

Multi-twist drill bit 5xD DIN 338 HSS ground 8.5 mm

Multi-twist drill bit 5xD DIN 338 HSS ground 8.5 mm

Multi-twist drill bit 5xD DIN 338 HSS ground 8.5 mm
Item no: 1010006 085

Online price:

Available for immediate delivery

Application
For steels up to 900 N/mm², V2A steels, iron, cast iron, non-ferrous metals, aluminium as well as plastics and wood.

Execution
  • Straight shank
  • Tip angle 135°
  • Relief grinding with special surface treatment
  • HSS ground

Advantage
  • Optimal power transmission and fixing in the drill chuck
  • Good adhesion of the lubricant
  • Fast and reliable chip removal


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 8,5 mm
Length: 117 mm
Chip flute length: 75 mm
Max. drilling depth (D): 5xD
Angle of the tip: 135 Degree
Cutting material: HSS
Surface: Vaporised
Tool holding device: Parallel shank with three tightening surfaces
DIN: 338
Coolant supply: External
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
f steel 700: 0,15 mm/r
